  11. Triangle Turning Insert, Triangle, 1/4 in, TPGT, 0.008 in, Carbide

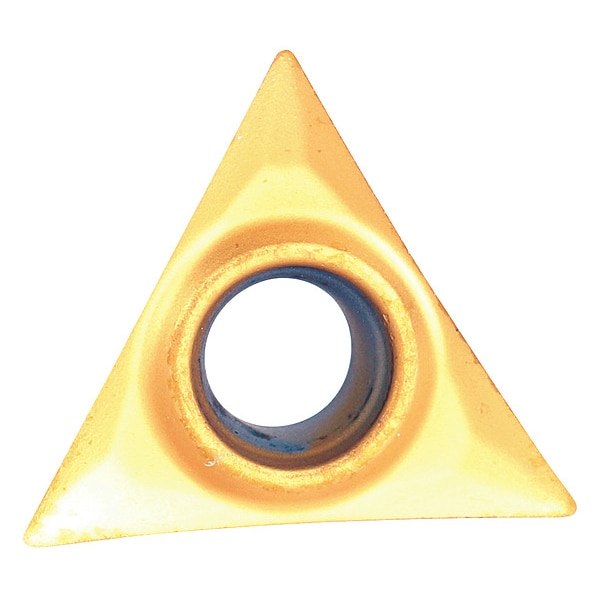

Widia Triangle Turning Insert, Triangle, 1/4 in, TPGT, 0.008 in, Carbide TPGT21505HP CG5 - main

Triangle Turning Insert, Triangle, 1/4 in, TPGT, 0.008 in, Carbide

  • Mfr # TPGT21505HP CG5

  • Zoro # G3878732

product price: $17.19
/ea
Sold in multiples of 5 for $85.95

Key Features

Insert Shape
Triangle
Insert Style
TPGT
Inscribed Circle
1/4 in
Insert Size
0.2500"
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TPGT21505HP CG5
Zoro #
G3878732
UPC #
4021169382963
Country of Origin
United States

Dimensions

Insert Size
0.2500"
Corner Radius
0.008 in
Insert Thickness
0.0938"
Thickness
0.0937 in
Through Hole Inside Dia.
0.114 in
Cutting Edge Length
11 mm

Details

Item
Triangle Turning Insert
Insert Shape
Triangle
Insert Style
TPGT
Inscribed Circle
1/4 in
Chip-Breaker
Yes
Grade
CG5
Insert Material
Carbide
Rake
Positive
ISO Number
TPGT110202HP
Cutting Direction
Neutral
Coating
TiN
Clearance Angle
11 Degrees
Secondary Material Application
Cast Iron
Chip-Breaker Code
HP
Measurement System
Fractional Inch
Material - Machining
Carbide
Shape
Triangle
Primary Material Application
Aluminum, Brass, Bronze, Copper, Magnesium, Nickel, Stainless Steel, Steel, Titanium
Chip-Breaker Style
On One Side
ANSI Code
TPGT21505HP
Finish - Machining
TiN
Secondary Material Application ISO Code
K
Coating Process
PVD
Cutting Application
Outside and Inside Diameter Turning
Insert Holding Type
40 Degrees to 60 Degrees Countersink Hole
Manufacturer Grade
CG5
Primary Material Application ISO Code
M, N, P, S
Included Angle
60 Degrees
Number of Cutting Edges
3
Material
Carbide

Description

Triangle Turning Insert, Chip-Breaker Code HP, Inscribed Circle 1/4 in, TiN
