  11. Triangle Turning Insert, Triangle, 1/4 in, TPHH, 0.0156 in, Carbide

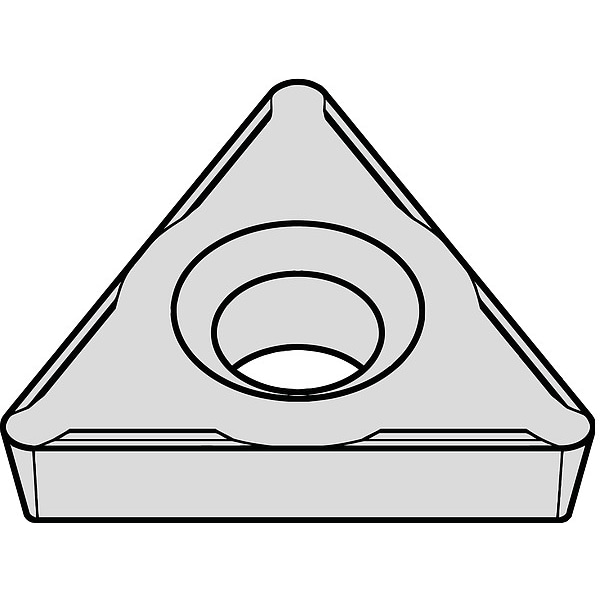

Widia Triangle Turning Insert, Triangle, 1/4 in, TPHH, 0.0156 in, Carbide TPHH2151 CG5 - main

Triangle Turning Insert, Triangle, 1/4 in, TPHH, 0.0156 in, Carbide

  • Mfr # TPHH2151 CG5

  • Zoro # G3875835

product price: $18.19
/ea
Sold in multiples of 5 for $90.95

Key Features

Insert Shape
Triangle
Insert Style
TPHH
Inscribed Circle
1/4 in
Insert Size
0.2500"
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TPHH2151 CG5
Zoro #
G3875835
UPC #
4021169381874
Country of Origin
United States

Dimensions

Insert Size
0.2500"
Corner Radius
0.0156 in
Insert Thickness
0.0938"
Cutting Edge Length
11 mm
Through Hole Inside Dia.
0.13 in
Thickness
0.0937 in

Details

Item
Triangle Turning Insert
Insert Shape
Triangle
Insert Style
TPHH
Inscribed Circle
1/4 in
Chip-Breaker
Yes
Grade
CG5
Insert Material
Carbide
Rake
Positive
ISO Number
TPHH110204
Coating
TiN
Cutting Direction
Neutral
Clearance Angle
11 Degrees
Coating Process
PVD
Primary Material Application ISO Code
M, N, P, S
Number of Cutting Edges
3
Chip-Breaker Style
On One Side
Material - Machining
Carbide
Manufacturer Grade
CG5
Shape
Triangle
Measurement System
Fractional Inch
Secondary Material Application
Cast Iron
Cutting Application
Outside and Inside Diameter Turning
ANSI Code
TPHH2151
Primary Material Application
Aluminum, Brass, Bronze, Copper, Magnesium, Nickel, Stainless Steel, Steel, Titanium
Included Angle
60 Degrees
Secondary Material Application ISO Code
K
Insert Holding Type
70 Degrees to 90 Degrees Countersink Hole
Finish - Machining
TiN
Material
Carbide

Description

Triangle Turning Insert, Inscribed Circle 1/4 in, TiN

Restrictions

WARNING: Cancer For more information go to www.P65Warnings.ca.gov
