  11. Triangle Turning Insert, Triangle, 3/8 in, TCMT, 0.0312 in, Carbide

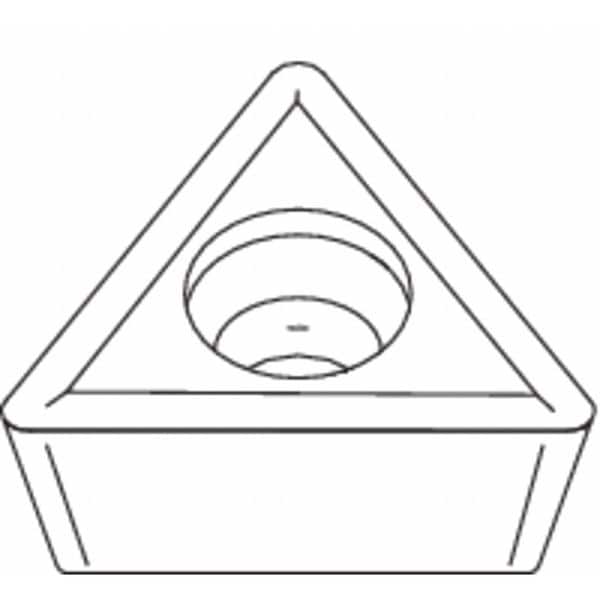

Widia Triangle Turning Insert, Triangle, 3/8 in, TCMT, 0.0312 in, Carbide TCMT3252 THM - main

Triangle Turning Insert, Triangle, 3/8 in, TCMT, 0.0312 in, Carbide

  • Mfr # TCMT3252 THM

  • Zoro # G7678507

product price: $15.49
/ea
Sold in multiples of 5 for $77.45

Key Features

Insert Shape
Triangle
Insert Style
TCMT
Inscribed Circle
3/8 in
Insert Size
3252
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TCMT3252 THM
Zoro #
G7678507
UPC #
-
Country of Origin
Germany

Dimensions

Insert Size
3252
Corner Radius
0.0312 in
Insert Thickness
0.1563"
Mounting Hole Dia.
0.173"
Nose Radius
0.031"
Cutting Edge Length
16.5 mm
Thickness
0.1562 in
Through Hole Inside Dia.
0.173 in

Details

Item
Triangle Turning Insert
Insert Shape
Triangle
Insert Style
TCMT
Inscribed Circle
3/8 in
Chip-Breaker
Yes
Grade
THM
Insert Material
Carbide
Insert Application
Finishing
Rake
Positive
ISO Number
TCMT16T308
For Use With
Toolholders, Boring Bars
Cutting Direction
Neutral
Workpiece Compatibility
Cast Iron (K), Hardened (H), Nonferrous (N), Super Alloy (S)
Super Alloy (S) Compatibility
Yes
Steel (P) Compatibility
No
No. of Edges
3
Mounting Style
Screw
ANSI Number
TCMT3252
Relief Angle
7 Degrees
Cast Iron (K) Compatibility
Yes
Non Ferrous (N) Compatibility
Yes
Hardened (H) Compatibility
Yes
Coating
Uncoated
Stainless (M) Compatibility
No
Measurement System
Fractional Inch
Cutting Application
Outside and Inside Diameter Turning
Primary Material Application ISO Code
H, K, N, S
Manufacturer Grade
THM
Number of Cutting Edges
3
ANSI Code
TCMT3252
Finish - Machining
Bright (Uncoated)
Chip-Breaker Style
On One Side
Included Angle
60 Degrees
Insert Holding Type
40 Degrees to 60 Degrees Countersink Hole
Clearance Angle
7 Degrees
Shape
Triangle
Primary Material Application
Aluminum, Brass, Bronze, Cast Iron, Copper, Hardened Steel, Magnesium, Nickel, Titanium
Material - Machining
Carbide
Material
Carbide

Description

Triangle Turning Insert, Inscribed Circle 3/8 in, Bright (Uncoated)
