  11. Triangle Turning Insert, Triangle, 3/8 in, TNG, 0.0156 in, Ceramic

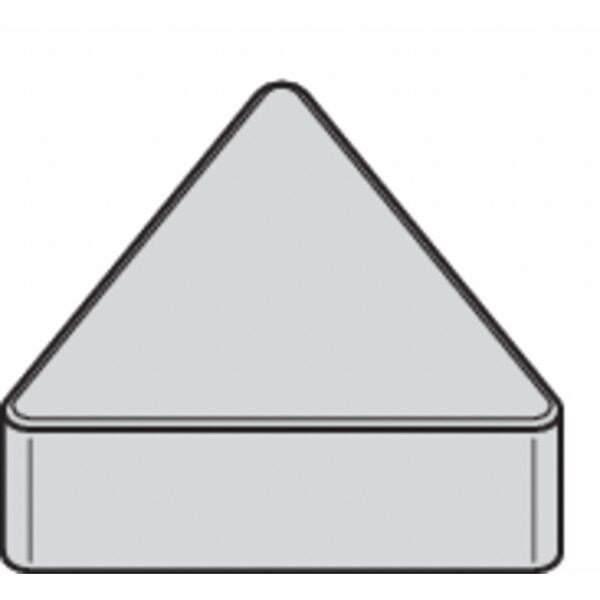

Widia Triangle Turning Insert, Triangle, 3/8 in, TNG, 0.0156 in, Ceramic TNG331T0820 CW2015 - main

Triangle Turning Insert, Triangle, 3/8 in, TNG, 0.0156 in, Ceramic

  • Mfr # TNG331T0820 CW2015

  • Zoro # G2909623

product price: $15.89
/ea
Sold in multiples of 5 for $79.45

Key Features

Insert Shape
Triangle
Insert Style
TNG
Inscribed Circle
3/8 in
Insert Size
331
Chip-Breaker
No
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TNG331T0820 CW2015
Zoro #
G2909623
UPC #
-
Country of Origin
Germany

Dimensions

Insert Size
331
Corner Radius
0.0156 in
Insert Thickness
0.1875"
Nose Radius
0.016"
Thickness
0.1875 in
Cutting Edge Length
16.5 mm

Details

Item
Triangle Turning Insert
Insert Shape
Triangle
Insert Style
TNG
Inscribed Circle
3/8 in
Chip-Breaker
No
Grade
CW2015
Insert Material
Ceramic
Insert Application
Medium
Rake
Negative
ISO Number
TNGN160404T02020
Non Ferrous (N) Compatibility
No
ANSI Number
TNG331T0820
No. of Edges
6
Mounting Style
Clamp
Coating
Uncoated
Workpiece Compatibility
Cast Iron (K)
Hardened (H) Compatibility
No
For Use With
Toolholders, Boring Bars
Super Alloy (S) Compatibility
No
Cast Iron (K) Compatibility
Yes
Cutting Direction
Neutral
Stainless (M) Compatibility
No
Steel (P) Compatibility
No
Relief Angle
0 Degrees
Insert Holding Type
No Screw Hole
Cutting Application
Outside and Inside Diameter Turning
Finish - Machining
Bright (Uncoated)
Clearance Angle
0 Degrees
Included Angle
60 Degrees
Measurement System
Fractional Inch
ANSI Code
TNG331T0820
Manufacturer Grade
CW2015
Number of Cutting Edges
6
Primary Material Application ISO Code
H, K
Shape
Triangle
Cutting Edge
Chamfered
Material Grade - Machining
Alumina
Primary Material Application
Cast Iron, Hardened Steel
Material - Machining
Ceramic
Material
Ceramic

Description

Triangle Turning Insert, Inscribed Circle 3/8 in, Bright (Uncoated)
