  11. Triangle Turning Insert, Triangle, 3/8 in, TNMG, 0.0312 in, Carbide

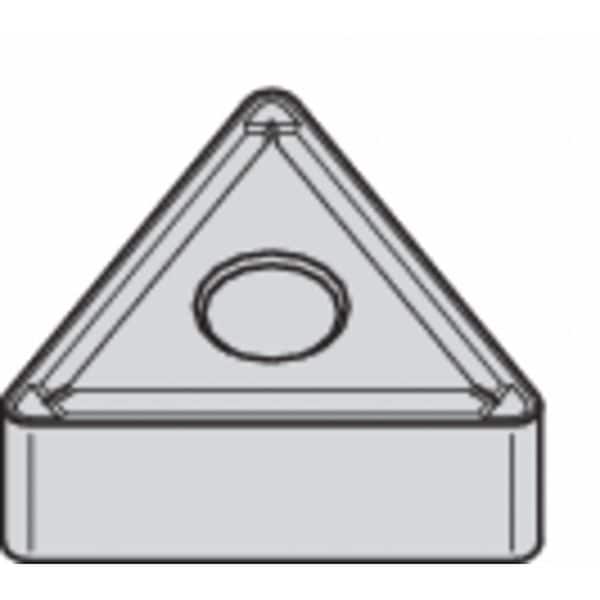

Widia Triangle Turning Insert, Triangle, 3/8 in, TNMG, 0.0312 in, Carbide TNMG3322P TN20P - main

Triangle Turning Insert, Triangle, 3/8 in, TNMG, 0.0312 in, Carbide

  • Mfr # TNMG3322P TN20P

  • Zoro # G2912082

product price: $10.19
/ea
Sold in multiples of 10 for $101.90

Key Features

Insert Shape
Triangle
Insert Style
TNMG
Inscribed Circle
3/8 in
Insert Size
332
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TNMG3322P TN20P
Zoro #
G2912082
UPC #
-
Country of Origin
United States

Dimensions

Insert Size
332
Corner Radius
0.0312 in
Insert Thickness
0.1875"
Nose Radius
0.031"
Mounting Hole Dia.
0.150"
Cutting Edge Length
16.5 mm
Thickness
0.1875 in
Through Hole Inside Dia.
0.15 in

Details

Item
Triangle Turning Insert
Insert Shape
Triangle
Insert Style
TNMG
Inscribed Circle
3/8 in
Chip-Breaker
Yes
Grade
TN20P
Insert Material
Carbide
Insert Application
Finishing
Rake
Negative
ISO Number
TNMG1604082P
ANSI Number
TNMG3322P
Cutting Direction
Neutral
Relief Angle
0 Degrees
For Use With
Toolholders, Boring Bars
Non Ferrous (N) Compatibility
No
Cast Iron (K) Compatibility
Yes
No. of Edges
6
Hardened (H) Compatibility
No
Mounting Style
Clamp
Stainless (M) Compatibility
No
Coating
Tin
Super Alloy (S) Compatibility
No
Workpiece Compatibility
Cast Iron (K), Steel (P)
Steel (P) Compatibility
Yes
Primary Material Application
Steel
Shape
Triangle
Material - Machining
Carbide
Secondary Material Application
Cast Iron
Insert Holding Type
Straight Hole
Chip-Breaker Style
Double Sided
Primary Material Application ISO Code
P
Cutting Application
Outside and Inside Diameter Turning
Included Angle
60 Degrees
Measurement System
Fractional Inch
Finish - Machining
TiN
Chip-Breaker Code
2P
Number of Cutting Edges
6
Clearance Angle
0 Degrees
ANSI Code
TNMG3322P
Secondary Material Application ISO Code
K
Manufacturer Grade
TN20P
Material
Carbide

Description

Triangle Turning Insert, Chip-Breaker Code 2P, Inscribed Circle 3/8 in, TiN
