  11. Triangle Turning Insert, Triangle, 3/8 in, TPHB, 0.3125 in, Carbide

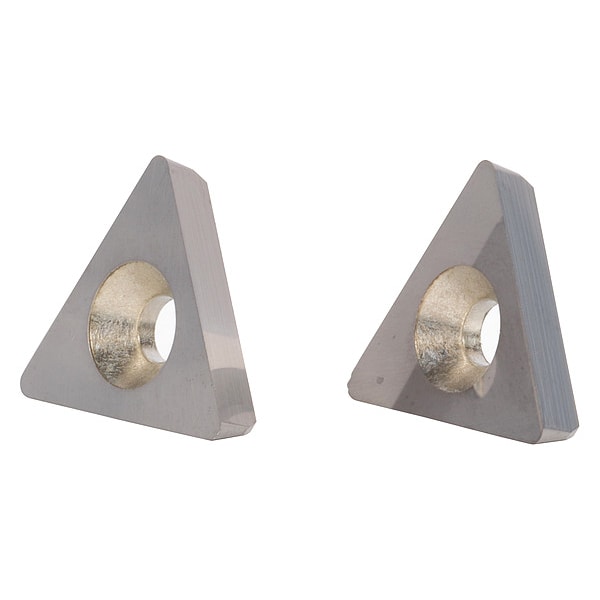

Widia Triangle Turning Insert, Triangle, 3/8 in, TPHB, 0.3125 in, Carbide TPHB322 TN7 - main

Triangle Turning Insert, Triangle, 3/8 in, TPHB, 0.3125 in, Carbide

  • Mfr # TPHB322 TN7

  • Zoro # G3874322

product price: $18.19
/ea
Sold in multiples of 5 for $90.95

Key Features

Insert Shape
Triangle
Insert Style
TPHB
Inscribed Circle
3/8 in
Insert Size
0.3750"
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TPHB322 TN7
Zoro #
G3874322
UPC #
4021169388620
Country of Origin
United States

Dimensions

Insert Size
0.3750"
Corner Radius
0.3125 in
Insert Thickness
0.1250"
Thickness
0.125 in
Cutting Edge Length
16.5 mm
Through Hole Inside Dia.
0.13 in

Details

Item
Triangle Turning Insert
Insert Shape
Triangle
Insert Style
TPHB
Inscribed Circle
3/8 in
Chip-Breaker
Yes
Grade
TN7
Insert Material
Carbide
Rake
Positive
ISO Number
TPHB160308
Cutting Direction
Neutral
Coating
TiN
ANSI Code
TPHB322
Cutting Application
Outside and Inside Diameter Turning
Chip-Breaker Style
On One Side
Finish - Machining
Bright (Uncoated)
Primary Material Application
Steel
Manufacturer Grade
TN7
Measurement System
Fractional Inch
Clearance Angle
11 Degrees
Number of Cutting Edges
3
Secondary Material Application ISO Code
K, M, N
Primary Material Application ISO Code
P
Secondary Material Application
Aluminum, Brass, Bronze, Cast Iron, Copper, Stainless Steel
Insert Holding Type
70 Degrees to 90 Degrees Countersink Hole
Included Angle
60 Degrees
Shape
Triangle
Material - Machining
Cermet
Material
Carbide

Description

Triangle Turning Insert, Inscribed Circle 3/8 in, Bright (Uncoated)
