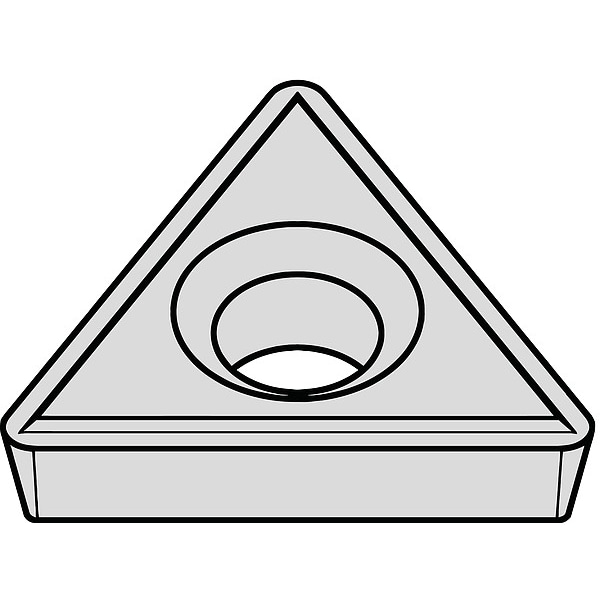

Triangle Turning Insert, Triangle, 3/8 in, TPHH, 0.0156 in

  • Mfr # TPHH321 CG6

  • Zoro # G3874812


product price: $20.39
/ea
Sold in multiples of 10 for $203.90

Key Features

Insert Shape
Triangle
Insert Style
TPHH
Inscribed Circle
3/8 in
Insert Size
0.3750"
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TPHH321 CG6
Zoro #
G3874812
UPC #
4021169387371
Country of Origin
United States

Dimensions

Insert Size
0.3750"
Corner Radius
0.0156 in
Insert Thickness
0.1250"
Thickness
0.125 in
Cutting Edge Length
16.5 mm
Through Hole Inside Dia.
0.13 in

Details

Item
Triangle Turning Insert
Insert Shape
Triangle
Insert Style
TPHH
Inscribed Circle
3/8 in
Chip-Breaker
Yes
Grade
CG6
Rake
Positive
ISO Number
TPHH160304
Cutting Direction
Neutral
Insert Holding Type
70 Degrees to 90 Degrees Countersink Hole
Number of Cutting Edges
3
Material - Machining
Carbide
Cutting Application
Outside and Inside Diameter Turning
Measurement System
Fractional Inch
Primary Material Application ISO Code
P
Manufacturer Grade
CG6
Clearance Angle
11 Degrees
Finish - Machining
TiC
Secondary Material Application
Cast Iron, Stainless Steel
Secondary Material Application ISO Code
K, M
Included Angle
60 Degrees
ANSI Code
TPHH321
Shape
Triangle
Primary Material Application
Steel
Coating Process
CVD
Chip-Breaker Style
On One Side

Description

Triangle Turning Insert, Inscribed Circle 3/8 in, TiC
