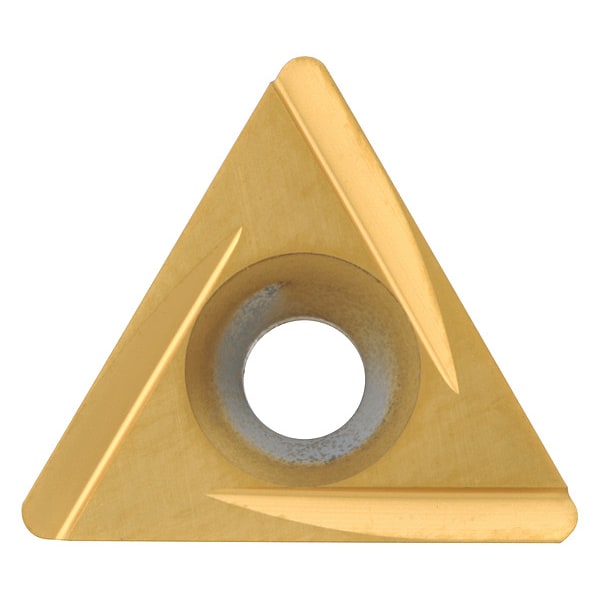

Widia Triangle Turning Insert, Triangle, 3/8 in, TPHH, 0.3125 in, Carbide TPHH322L CG5 - main

Triangle Turning Insert, Triangle, 3/8 in, TPHH, 0.3125 in, Carbide

  • Mfr # TPHH322L CG5

  • Zoro # G3877481

product price: $23.99
/ea
Sold in multiples of 10 for $239.90

Key Features

Insert Shape
Triangle
Insert Style
TPHH
Inscribed Circle
3/8 in
Insert Size
0.3750"
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TPHH322L CG5
Zoro #
G3877481
UPC #
4021169389634
Country of Origin
United States

Dimensions

Insert Size
0.3750"
Corner Radius
0.3125 in
Insert Thickness
0.1250"
Thickness
0.125 in
Cutting Edge Length
16.5 mm
Through Hole Inside Dia.
0.13 in

Details

Item
Triangle Turning Insert
Insert Shape
Triangle
Insert Style
TPHH
Inscribed Circle
3/8 in
Chip-Breaker
Yes
Grade
CG5
Insert Material
Carbide
Rake
15 Degrees
ISO Number
TPHH160308L
Coating
TiN
Cutting Direction
Left Hand
Clearance Angle
11 Degrees
ANSI Code
TPHH322L
Chip-Breaker Style
On One Side
Primary Material Application
Aluminum, Brass, Bronze, Copper, Magnesium, Nickel, Stainless Steel, Steel, Titanium
Insert Holding Type
70 Degrees to 90 Degrees Countersink Hole
Cutting Application
Outside and Inside Diameter Turning
Measurement System
Fractional Inch
Secondary Material Application ISO Code
K
Number of Cutting Edges
3
Included Angle
60 Degrees
Finish - Machining
TiN
Coating Process
PVD
Secondary Material Application
Cast Iron
Manufacturer Grade
CG5
Shape
Triangle
Material - Machining
Carbide
Primary Material Application ISO Code
M, N, P, S
Material
Carbide

Description

Triangle Turning Insert, Inscribed Circle 3/8 in, TiN
