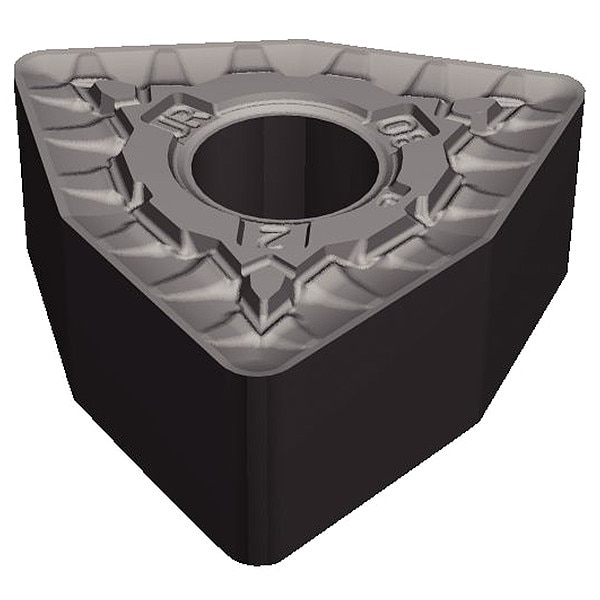

Widia Trigon Turning Inserts, Trigon, 4, WNMG, 80 Degrees, 3 WNMG433UR WU10PT - main

Trigon Turning Inserts, Trigon, 4, WNMG, 80 Degrees, 3

  • Mfr # WNMG433UR WU10PT

  • Zoro # G005972446

product price: $8.19
/ea
Sold in multiples of 5 for $40.95

Key Features

Insert Shape
Trigon
Insert Style
WNMG
Inscribed Circle
4
Chip-Breaker
Yes
Corner Radius
3
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
WNMG433UR WU10PT
Zoro #
G005972446
UPC #
-
Country of Origin
India

Dimensions

Corner Radius
3
Cutting Edge Length
0.3420 in
Depth of Cut
0.1883 in
Thickness
3
Through Hole Inside Dia.
0.2031 in

Details

Item
Trigon Turning Inserts
Insert Shape
Trigon
Insert Style
WNMG
Inscribed Circle
4
Chip-Breaker
Yes
Rake
Negative
ISO Number
WNMG080412UR
Cutting Direction
Neutral
Included Angle
80 Degrees
Secondary Material Application
Cast Iron, Hardened Material, Non-Ferrous
Secondary Material Application ISO Code
H, K, N
Material - Machining
Carbide
Manufacturer Grade
WU10PT
Number of Cutting Edges
6
Chip-Breaker Code
UR
Primary Material Application ISO Code
M, P, S
Shape
Trigon
Material Grade - Machining
Carbide
Finish - Machining
TiAlN
Clearance Angle
0 Degrees
Measurement System
Decimal Inch
Coating Process
PVD
Primary Material Application
High-Temperature Alloy, Stainless Steel, Steel
Features
Deformation Resistance
Cutting Application
Roughing
ANSI Code
WNMG433UR

Description

Trigon Turning Inserts, Chip-Breaker Code UR, Inscribed Circle 0.500 in, TiAlN

Restrictions

WARNING: Cancer For more information go to www.P65Warnings.ca.gov
