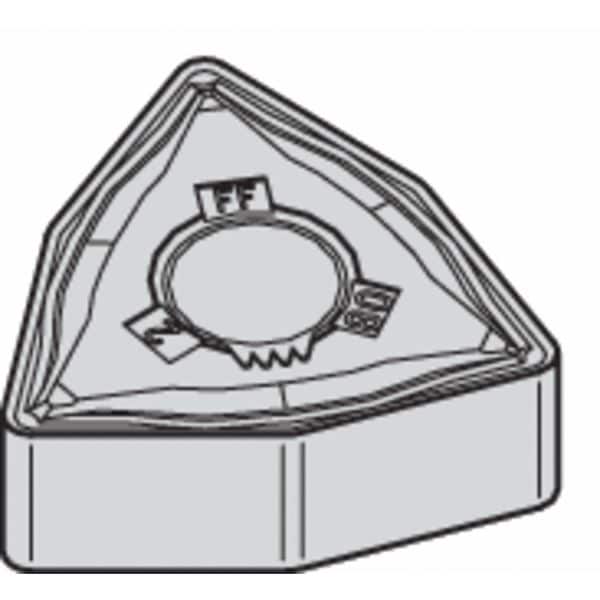

Widia Turning Insert, Trigon, 3, WNMG, 1, Carbide WNMG331FF WP15CT - main

Turning Insert, Trigon, 3, WNMG, 1, Carbide

  • Mfr # WNMG331FF WP15CT

  • Zoro # G2812341

product price: $7.49
/ea
Sold in multiples of 10 for $74.90

Key Features

Insert Shape
Trigon
Insert Style
WNMG
Inscribed Circle
3
Insert Size
331
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
WNMG331FF WP15CT
Zoro #
G2812341
UPC #
-
Country of Origin
India

Dimensions

Insert Size
331
Corner Radius
1
Insert Thickness
0.1875"
Nose Radius
0.016"
Mounting Hole Dia.
0.150"
Through Hole Inside Dia.
0.1500 in
Thickness
3
Cutting Edge Length
6.52mm

Details

Item
Turning Insert
Insert Shape
Trigon
Insert Style
WNMG
Inscribed Circle
3
Chip-Breaker
Yes
Grade
WP15CT
Insert Material
Carbide
Insert Application
Finishing
Rake
Negative
ISO Number
WNMG060404FF
Stainless (M) Compatibility
No
Non Ferrous (N) Compatibility
No
ANSI Number
WNMG331FF
Cutting Direction
Neutral
Super Alloy (S) Compatibility
No
Mounting Style
Clamp
Steel (P) Compatibility
Yes
No. of Edges
6
Cast Iron (K) Compatibility
Yes
For Use With
Toolholders, Boring Bars
Relief Angle
0 Degrees
Hardened (H) Compatibility
No
Coating
Tin
Workpiece Compatibility
Cast Iron (K), Steel (P)
Primary Material Application
Steel
Primary Material Application ISO Code
P
Chip-Breaker Code
FF
Insert Holding Type
Straight Hole
Coating Process
CVD
ANSI Code
WNMG331FF
Finish - Machining
TiN
Shape
Trigon
Secondary Material Application
Cast Iron
Material - Machining
Carbide
Clearance Angle
0 Degrees
Number of Cutting Edges
6
Measurement System
Fractional Inch
Secondary Material Application ISO Code
K
Chip-Breaker Style
Double Sided
Included Angle
80 Degrees
Manufacturer Grade
WP15CT
Cutting Application
Outside and Inside Diameter Turning
Material
Carbide

Description

Turning Insert, Chip-Breaker Code FF, Inscribed Circle 3/8 in, TiN
