  11. Turning Insert, Trigon, 3, WNMG, 2, Carbide

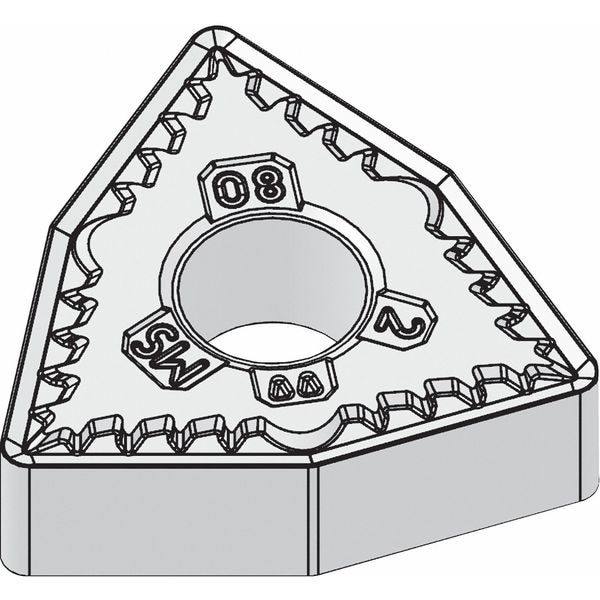

Widia Turning Insert, Trigon, 3, WNMG, 2, Carbide WNMG332MS WS10PT - main

Turning Insert, Trigon, 3, WNMG, 2, Carbide

  • Mfr # WNMG332MS WS10PT

  • Zoro # G2819262

product price: $13.69
/ea
Sold in multiples of 5 for $68.45

Key Features

Insert Shape
Trigon
Insert Style
WNMG
Inscribed Circle
3
Insert Size
332
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
WNMG332MS WS10PT
Zoro #
G2819262
UPC #
-
Country of Origin
United States

Dimensions

Insert Size
332
Corner Radius
2
Insert Thickness
0.1875"
Nose Radius
0.031"
Mounting Hole Dia.
0.150"
Through Hole Inside Dia.
0.1500 in
Cutting Edge Length
6.52mm
Thickness
3

Details

Item
Turning Insert
Insert Shape
Trigon
Insert Style
WNMG
Inscribed Circle
3
Chip-Breaker
Yes
Grade
WS10PT
Insert Material
Carbide
Insert Application
Medium
Rake
Negative
ISO Number
WNMG060408MS
For Use With
Toolholders, Boring Bars
Cast Iron (K) Compatibility
Yes
ANSI Number
WNMG332MS
No. of Edges
6
Hardened (H) Compatibility
No
Steel (P) Compatibility
Yes
Super Alloy (S) Compatibility
Yes
Workpiece Compatibility
Cast Iron (K), Nonferrous (N), Stainless (M), Steel (P), Super Alloy (S)
Non Ferrous (N) Compatibility
Yes
Coating
AlTiSiN
Relief Angle
0 Degrees
Stainless (M) Compatibility
Yes
Cutting Direction
Neutral
Mounting Style
Clamp
Secondary Material Application
Aluminum, Brass, Bronze, Cast Iron, Copper, Steel
Number of Cutting Edges
6
Chip-Breaker Style
Double Sided
Measurement System
Fractional Inch
Manufacturer Grade
WS10PT
Primary Material Application
Nickel, Stainless Steel, Titanium
ANSI Code
WNMG332MS
Included Angle
80 Degrees
Shape
Trigon
Finish - Machining
AlTiSiN
Secondary Material Application ISO Code
K, N, P
Chip-Breaker Code
MS
Coating Process
PVD
Material - Machining
Carbide
Clearance Angle
0 Degrees
Primary Material Application ISO Code
M, S
Cutting Application
Outside and Inside Diameter Turning
Insert Holding Type
Straight Hole
Material
Carbide

Description

Turning Insert, Chip-Breaker Code MS, Inscribed Circle 3/8 in, AlTiSiN
