  11. Turning Insert, Trigon, 4, WNMA, 3, Carbide

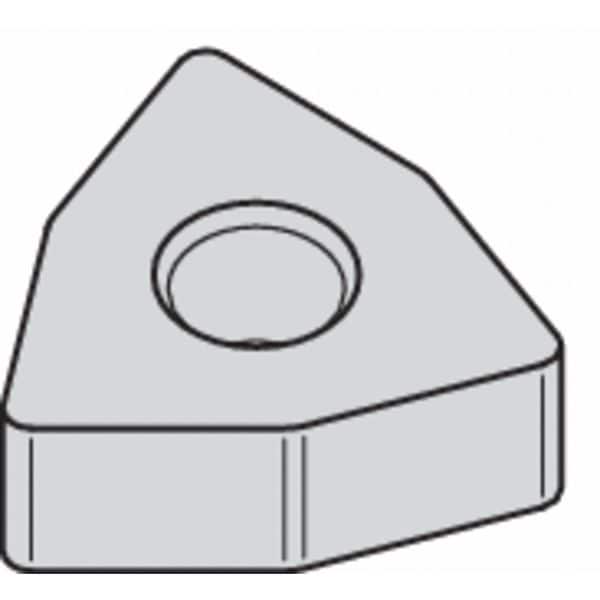

Widia Turning Insert, Trigon, 4, WNMA, 3, Carbide WNMA433 WK05CT - main

Turning Insert, Trigon, 4, WNMA, 3, Carbide

  • Mfr # WNMA433 WK05CT

  • Zoro # G7679977

product price: $8.99
/ea
Sold in multiples of 5 for $44.95

Key Features

Insert Shape
Trigon
Insert Style
WNMA
Inscribed Circle
4
Insert Size
433
Chip-Breaker
No
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
WNMA433 WK05CT
Zoro #
G7679977
UPC #
-
Country of Origin
India

Dimensions

Insert Size
433
Corner Radius
3
Mounting Hole Dia.
0.203"
Insert Thickness
0.1875"
Nose Radius
0.047"
Through Hole Inside Dia.
0.2030 in
Cutting Edge Length
8.69mm
Thickness
3

Details

Item
Turning Insert
Insert Shape
Trigon
Insert Style
WNMA
Inscribed Circle
4
Chip-Breaker
No
Grade
WK05CT
Insert Material
Carbide
Insert Application
Medium
Rake
Negative
ISO Number
WNMA080412
Stainless (M) Compatibility
No
Super Alloy (S) Compatibility
No
Cutting Direction
Neutral
Workpiece Compatibility
Cast Iron (K), Steel (P)
ANSI Number
WNMA433
Cast Iron (K) Compatibility
Yes
Steel (P) Compatibility
Yes
For Use With
Toolholders, Boring Bars
No. of Edges
6
Hardened (H) Compatibility
No
Mounting Style
Clamp
Coating
Tin
Non Ferrous (N) Compatibility
No
Relief Angle
0 Degrees
Material - Machining
Carbide
Number of Cutting Edges
6
Secondary Material Application ISO Code
P
Shape
Trigon
ANSI Code
WNMA433
Cutting Application
Outside and Inside Diameter Turning
Insert Holding Type
Straight Hole
Coating Process
CVD
Finish - Machining
TiN
Primary Material Application
Cast Iron
Primary Material Application ISO Code
K
Measurement System
Fractional Inch
Clearance Angle
0 Degrees
Secondary Material Application
Steel
Manufacturer Grade
WK05CT
Included Angle
80 Degrees
Material
Carbide

Description

Turning Insert, Inscribed Circle 1/2 in, TiN
