  11. Turning Insert, Trigon, 4, WNMG, 1, Carbide

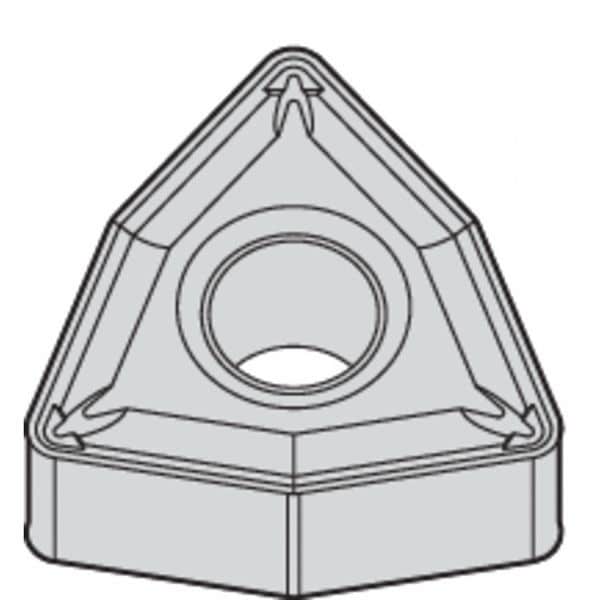

Widia Turning Insert, Trigon, 4, WNMG, 1, Carbide WNMG4312P TN20K - main

Turning Insert, Trigon, 4, WNMG, 1, Carbide

  • Mfr # WNMG4312P TN20K

  • Zoro # G2910700

product price: $10.99
/ea
Sold in multiples of 5 for $54.95

Key Features

Insert Shape
Trigon
Insert Style
WNMG
Inscribed Circle
4
Insert Size
431
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
WNMG4312P TN20K
Zoro #
G2910700
UPC #
-
Country of Origin
United States

Dimensions

Insert Size
431
Corner Radius
1
Mounting Hole Dia.
0.203"
Insert Thickness
0.1875"
Nose Radius
0.016"
Thickness
3
Cutting Edge Length
8.69mm
Through Hole Inside Dia.
0.2030 in

Details

Item
Turning Insert
Insert Shape
Trigon
Insert Style
WNMG
Inscribed Circle
4
Chip-Breaker
Yes
Grade
TN20K
Insert Material
Carbide
Insert Application
Finishing
Rake
Negative
ISO Number
WNMG0804042P
Cutting Direction
Neutral
Hardened (H) Compatibility
No
Stainless (M) Compatibility
No
For Use With
Toolholders, Boring Bars
ANSI Number
WNMG4312P
Relief Angle
0 Degrees
Mounting Style
Clamp
Non Ferrous (N) Compatibility
No
Steel (P) Compatibility
Yes
Coating
Tin
Super Alloy (S) Compatibility
No
Workpiece Compatibility
Cast Iron (K), Steel (P)
No. of Edges
6
Cast Iron (K) Compatibility
Yes
Number of Cutting Edges
6
Cutting Application
Outside and Inside Diameter Turning
Chip-Breaker Code
2P
Insert Holding Type
Straight Hole
Clearance Angle
0 Degrees
Measurement System
Fractional Inch
Primary Material Application
Cast Iron
Material - Machining
Carbide
Included Angle
80 Degrees
Finish - Machining
TiN
Secondary Material Application
Steel
Coating Process
CVD
Secondary Material Application ISO Code
P
Shape
Trigon
Primary Material Application ISO Code
K
Chip-Breaker Style
Double Sided
ANSI Code
WNMG4312P
Manufacturer Grade
TN20K
Material
Carbide

Description

Turning Insert, Chip-Breaker Code 2P, Inscribed Circle 1/2 in, TiN
