  11. Turning Insert, Trigon, 4, WNMG, 3, Carbide

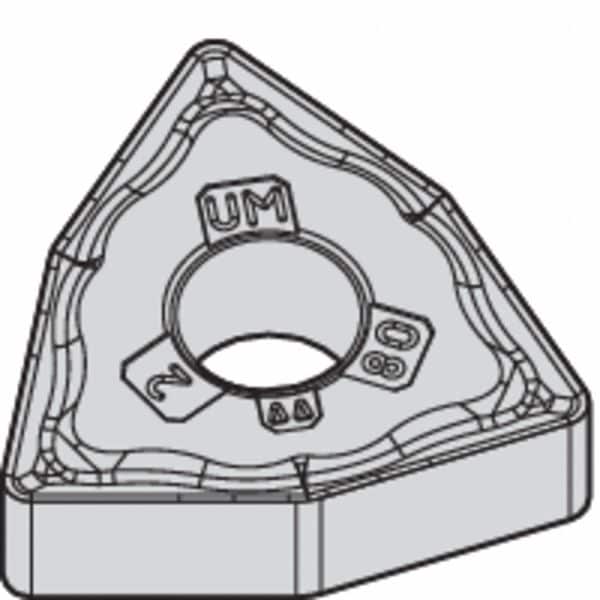

Widia Turning Insert, Trigon, 4, WNMG, 3, Carbide WNMG433UM WS10PT - main

Turning Insert, Trigon, 4, WNMG, 3, Carbide

  • Mfr # WNMG433UM WS10PT

  • Zoro # G2817768

product price: $15.79
/ea
Sold in multiples of 5 for $78.95

Key Features

Insert Shape
Trigon
Insert Style
WNMG
Inscribed Circle
4
Insert Size
433
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
WNMG433UM WS10PT
Zoro #
G2817768
UPC #
-
Country of Origin
United States

Dimensions

Insert Size
433
Corner Radius
3
Insert Thickness
0.1875"
Mounting Hole Dia.
0.203"
Nose Radius
0.047"
Thickness
3
Through Hole Inside Dia.
0.2030 in
Cutting Edge Length
8.69mm

Details

Item
Turning Insert
Insert Shape
Trigon
Insert Style
WNMG
Inscribed Circle
4
Chip-Breaker
Yes
Grade
WS10PT
Insert Material
Carbide
Insert Application
Medium
Rake
Negative
ISO Number
WNMG080412UM
Hardened (H) Compatibility
No
Stainless (M) Compatibility
Yes
Workpiece Compatibility
Cast Iron (K), Nonferrous (N), Stainless (M), Steel (P), Super Alloy (S)
Super Alloy (S) Compatibility
Yes
Coating
AlTiSiN
No. of Edges
6
Non Ferrous (N) Compatibility
Yes
Cutting Direction
Neutral
Steel (P) Compatibility
Yes
ANSI Number
WNMG433UM
For Use With
Toolholders, Boring Bars
Cast Iron (K) Compatibility
Yes
Relief Angle
0 Degrees
Mounting Style
Clamp
Shape
Trigon
Finish - Machining
AlTiSiN
Chip-Breaker Style
Double Sided
Insert Holding Type
Straight Hole
Material - Machining
Carbide
Primary Material Application
Nickel, Stainless Steel, Titanium
Clearance Angle
0 Degrees
Secondary Material Application ISO Code
K, N, P
Manufacturer Grade
WS10PT
Primary Material Application ISO Code
M, S
Coating Process
PVD
Measurement System
Fractional Inch
Cutting Application
Outside and Inside Diameter Turning
Included Angle
80 Degrees
ANSI Code
WNMG433UM
Number of Cutting Edges
6
Secondary Material Application
Aluminum, Brass, Bronze, Cast Iron, Copper, Steel
Chip-Breaker Code
UM
Material
Carbide

Description

Turning Insert, Chip-Breaker Code UM, Inscribed Circle 1/2 in, AlTiSiN
