  11. Turning Insert, Trigon, 4, WNMP, 2, Carbide

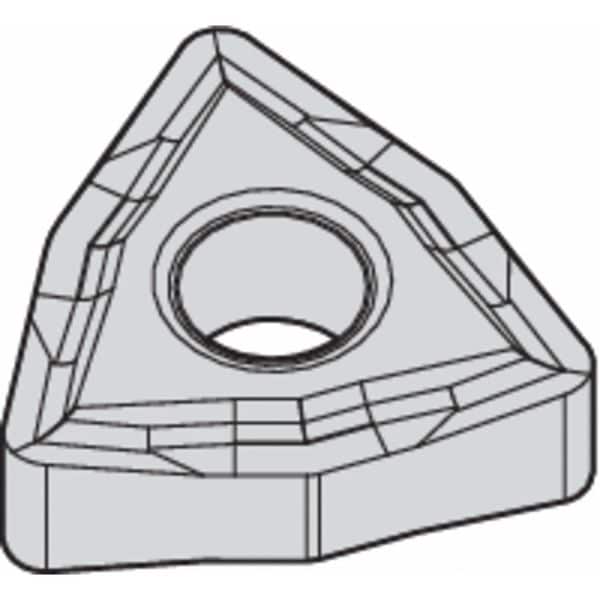

Widia Turning Insert, Trigon, 4, WNMP, 2, Carbide WNMP432 WS10PT - main

Turning Insert, Trigon, 4, WNMP, 2, Carbide

  • Mfr # WNMP432 WS10PT

  • Zoro # G2815957

product price: $15.59
/ea
Sold in multiples of 5 for $77.95

Key Features

Insert Shape
Trigon
Insert Style
WNMP
Inscribed Circle
4
Insert Size
432
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
WNMP432 WS10PT
Zoro #
G2815957
UPC #
-
Country of Origin
United States

Dimensions

Insert Size
432
Corner Radius
2
Nose Radius
0.031"
Insert Thickness
0.1875"
Mounting Hole Dia.
0.203"
Cutting Edge Length
8.69mm
Thickness
3
Through Hole Inside Dia.
0.2030 in

Details

Item
Turning Insert
Insert Shape
Trigon
Insert Style
WNMP
Inscribed Circle
4
Chip-Breaker
Yes
Grade
WS10PT
Insert Material
Carbide
Insert Application
Finishing
Rake
Negative
ISO Number
WNMP080408
Coating
AlTiSiN
Relief Angle
0 Degrees
Super Alloy (S) Compatibility
Yes
No. of Edges
6
Cutting Direction
Neutral
Stainless (M) Compatibility
Yes
ANSI Number
WNMP432
Workpiece Compatibility
Cast Iron (K), Nonferrous (N), Stainless (M), Steel (P), Super Alloy (S)
For Use With
Toolholders, Boring Bars
Cast Iron (K) Compatibility
Yes
Non Ferrous (N) Compatibility
Yes
Steel (P) Compatibility
Yes
Hardened (H) Compatibility
No
Mounting Style
Clamp
Primary Material Application
Nickel, Stainless Steel, Titanium
Included Angle
80 Degrees
ANSI Code
WNMP432
Finish - Machining
AlTiSiN
Cutting Application
Outside and Inside Diameter Turning
Coating Process
PVD
Secondary Material Application
Aluminum, Brass, Bronze, Cast Iron, Copper, Steel
Insert Holding Type
Straight Hole
Number of Cutting Edges
6
Measurement System
Fractional Inch
Primary Material Application ISO Code
M, S
Chip-Breaker Style
Double Sided
Clearance Angle
0 Degrees
Secondary Material Application ISO Code
K, N, P
Shape
Trigon
Manufacturer Grade
WS10PT
Material - Machining
Carbide
Material
Carbide

Description

Turning Insert, Inscribed Circle 1/2 in, AlTiSiN
