  9. 3 Point Latch with Padlock Handle Electrical Enclosures, 42 in H, 12 in D, 36 in W

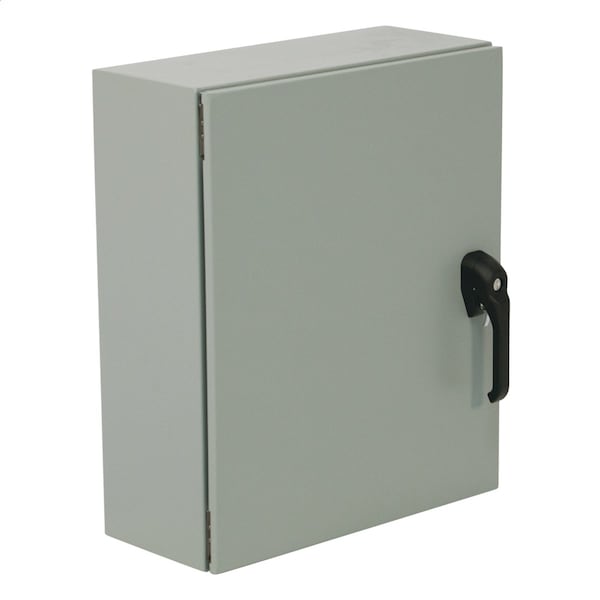

Wiegmann 3 Point Latch with Padlock Handle Electrical Enclosures, 42 in H, 12 in D, 36 in W N4124236123PTC - main

3 Point Latch with Padlock Handle Electrical Enclosures, 42 in H, 12 in D, 36 in W

  • Mfr # N4124236123PTC

  • Zoro # G7340194

product price: $1,086.99
/ea
Free Shipping & Returns

Key Features

Nominal Width
36 in
Nominal Height
42 in
Nominal Depth
12 in
Closure Method
3 Point Latch with Padlock Handle
Knockouts
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
N4124236123PTC
Zoro #
G7340194
UPC #
786725869268
Country of Origin
United States

Dimensions

Nominal Width
36 in
Nominal Height
42 in
Nominal Depth
12 in

Details

Item
Electrical Enclosures
Closure Method
3 Point Latch with Padlock Handle
Knockouts
Yes
Metallic / Non-Metallic
Metallic
Color
Gray
Finish
Polyester Powder
Mounting
Wall
Enclosure NEMA Rating
NEMA 4
Material of Enclosure
Carbon Steel
Enclosure Cover Type
Hinged
Standards
UL, CSA
Features
Bodies and doors fabricated from 14 gauge steel; Continuously welded seams ground smooth, less holes and knockouts; Doors are interchangeable and easily removable; Grounding studs are welded to door and body assuring a positive ground; Print pocket is provided; Doors are sealed with poured-in-place gasket; Mounting holes in rear of enclosure; Collar studs for mounting optional back panel; With 3pt keylocking/padlocking combo handle
Solid / Clear Cover
Solid
Weight
128 lb.
Application
Hubbell Wiegmann N4123PTC ULTIMATE Series Enclosures are designed to house and protect electrical and eletronic components from harsh, dirty environments. For use in installations where dirt, dust, oil water, or other contaminants are present. Streamlined
Capacity
18144 cu.in
Cover Closure Type
Hinged
NEMA Enclosure Rating
NEMA 4
Cover Style
Solid
Enclosure Material
Carbon Steel

Description

Hubbell Wiegmann N412C ULTIMATE Series Enclosures are designed to house and protect electrical and electronic components from harsh, dirty environments. For use in installations where dirt, dust, oil, water, or other contaminants are present. Streamlined styling,flush latching, and attrative durable finish complement any high tech electronic equipment.
