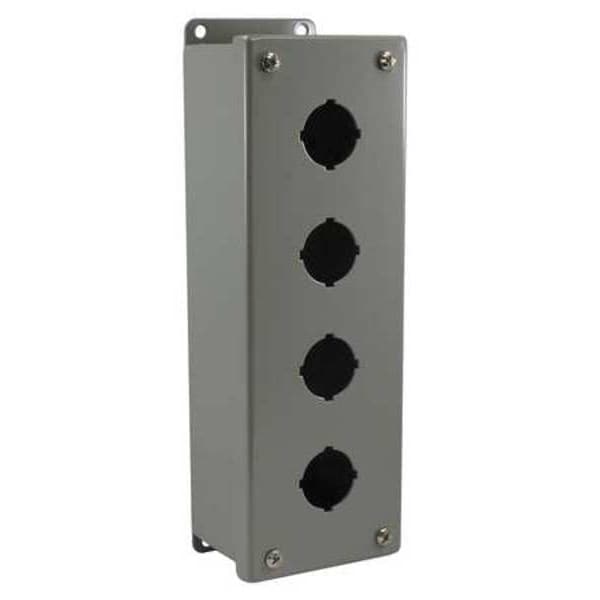

Wiegmann Enclosure, Push Button PB4 - main

Enclosure, Push Button

  • Mfr # PB4

  • Zoro # G3332034

product price: $129.99
/ea
Free Shipping & Returns

Key Features

Number of Columns
1
Hole Size
30 mm
Material
Carbon Steel
Conduit Size
No Conduit Entrance Holes Provided
Number of Holes
4
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
PB4
Zoro #
G3332034
UPC #
786725430208
Country of Origin
Mexico

Dimensions

Hole Size
30 mm
Conduit Size
No Conduit Entrance Holes Provided
Dimensions
10.25 in H x 3.25 in W x 2.81 in D
Height
10.25 in
Width
3.25 in
Depth
2.81 in
Actual Height
10.250 in
Actual Depth
10.25 in
Actual Width
3.250 in
Overall Depth
3 1/8 in
Panel Cutout Diameter
30 mm
Compatible Conduit Size - Maximum
No Conduit Entrance Holes Provided
Overall Width
3 9/16 in
Overall Height
10 1/2 in

Details

Item
Push Button Enclosure
Number of Columns
1
Material
Carbon Steel
Number of Holes
4
NEMA Rating
12, 13, 4
Color
Gray
Includes
Captive Cover Screws, Closed Cell Oil Resistant Gasket
Standards
cULus, UL Listed
Type
Oil Tight
Mounting Style
External Plates
Features
Bodies and doors fabricated from 14 gauge steel. Continuously welded seams ground smooth. Closed cell oil resistant neoprene gasket. External mounting plates, top and bottom of enclosure. Captivated cover screws thread into sealed wells. Standard "4-way" pushbutton holes accept all brands of oil-tight push buttons, switches, and pilot lights. Grounding provisions provided.
Finish Type
Polyester Powder
Cover Type
Pushbutton;Screw
Mounting Type
External Mounting Plates
Application
Designed to hold all standard brands of pushbuttons, switches, and pilot lights. Provide protection from dust, dirt, oil and water.
Cubic Capacity
300 cu.in
Certified Listed
cULus
Listings
UL, CSA
Construction
Continuously Welded Seams
Mounting
External Mounting Plates
Series
PB
Standard
cULus
UL Listed
Yes
NEMA Enclosure Rating
4

Description

Push Button Enclosure, Number of Columns 1, Number of Holes 4, NEMA Rating 12, 13, 4, Conduit Size No Conduit Entrance Holes Provided, Dimensions 10.25 in H x 3.25 in W x 2.81 in D, Hole Size 30 mm, Material Carbon Steel, Height 10.25 in, Width 3.25 in, Depth 2.81 in, Color Gray, Includes Captive Cover Screws, Closed Cell Oil Resistant Gasket, Type Oil Tight, Mounting Style External Plates, Standards cULus, UL Listed
