  13. Pushbutton Enclosure, 30mm, 3 Holes, Steel
Shop All Push Button Enclosures
Wiegmann

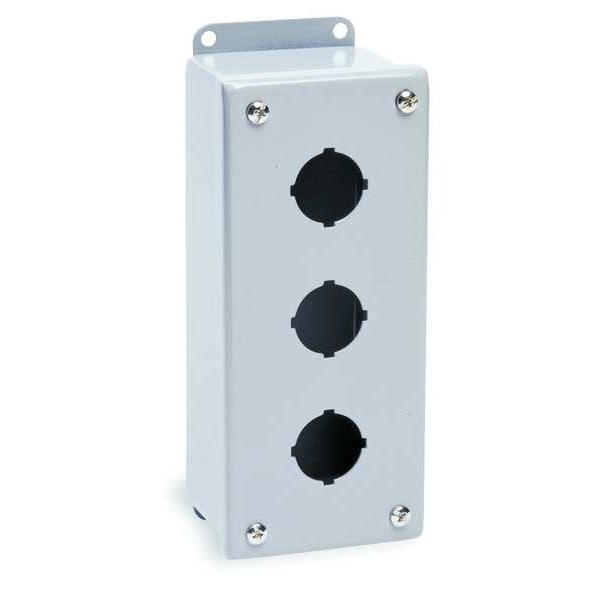

Pushbutton Enclosure, 30mm, 3 Holes, Steel

product price: $78.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Number of Columns 1
  • Hole Size 30 mm
  • Material Carbon Steel
  • Number of Holes 3
  • Conduit Size No Conduit Entrance Holes Provided
See all product information

Product Information

Dimensions

Hole Size 30 mm
Conduit Size No Conduit Entrance Holes Provided
Dimensions 8.00 in H x 3.25 in W x 2.81 in D
Height 8 in
Width 3.25 in
Depth 2.81 in
Actual Width 3.250 in
Overall Height 8 1/4 in
Panel Cutout Diameter 30 mm
Compatible Conduit Size - Maximum No Conduit Entrance Holes Provided
Overall Width 3 9/16 in
Overall Depth 3 1/8 in

Details

Number of Columns 1
Item Push Button Enclosure
Material Carbon Steel
Number of Holes 3
NEMA Rating 12, 13, 4
Color Gray
Includes Captive Cover Screws, Closed Cell Oil Resistant Gasket
Type Oil Tight
Standards cULus, UL Listed
Mounting Style External Plates
Features Bodies and doors fabricated from 14 gauge steel. Continuously welded seams ground smooth. Closed cell oil resistant neoprene gasket. External mounting plates, top and bottom of enclosure. Captivated cover screws thread into sealed wells. Standard "4-way" pushbutton holes accept all brands of oil-tight push buttons, switches, and pilot lights. Grounding provisions provided.
Cover Type Pushbutton;Screw
UL Listed Yes
Series PB
Finish Type Polyester Powder
Mounting Type External Mounting Plates
Listings UL, CSA
Certified Listed cULus
Application Designed to hold all standard brands of pushbuttons, switches, and pilot lights. Provide protection from dust, dirt, oil and water.
Cubic Capacity 192 cu.in
Construction Continuously Welded Seams
Mounting External Mounting Plates
Standard cULus
NEMA Enclosure Rating 4

Description

Push Button Enclosure, Number of Columns 1, Number of Holes 3, NEMA Rating 12, 13, 4, Conduit Size No Conduit Entrance Holes Provided, Dimensions 8.00 in H x 3.25 in W x 2.81 in D, Hole Size 30 mm, Material Carbon Steel, Height 8 in, Width 3.25 in, Depth 2.81 in, Color Gray, Includes Captive Cover Screws, Closed Cell Oil Resistant Gasket, Type Oil Tight, Mounting Style External Plates, Standards cULus, UL Listed
