  13. Pushbutton Enclosure, 30mm, 4 Holes, Steel
Shop All Push Button Enclosures
Wiegmann

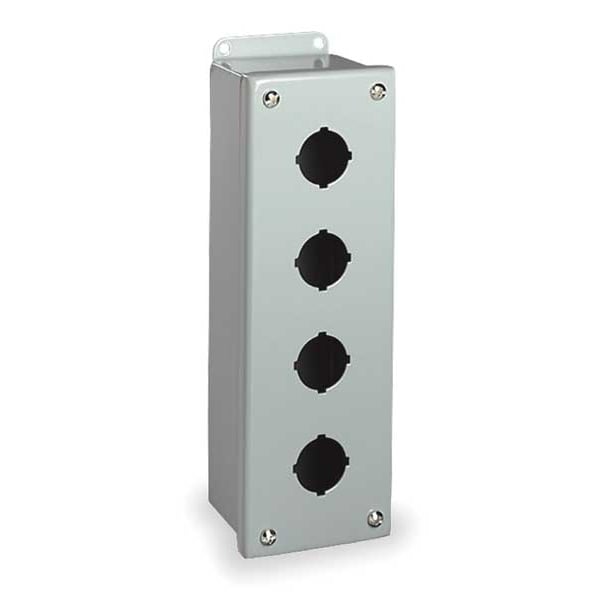

Pushbutton Enclosure, 30mm, 4 Holes, Steel

product price: $103.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Number of Columns 1
  • Hole Size 30 mm
  • Material Carbon Steel
  • Conduit Size No Conduit Entrance Holes Provided
  • Number of Holes 4
See all product information

Product Information

Dimensions

Hole Size 30 mm
Conduit Size No Conduit Entrance Holes Provided
Dimensions 10.75 in H x 2.50 in W x 2.50 in D
Height 10.75 in
Width 2.5 in
Depth 2.5 in
Actual Depth 2.5 in
Actual Height 10.750 in
Actual Width 2.500 in
Overall Width 3 in
Overall Height 11 in
Compatible Conduit Size - Maximum No Conduit Entrance Holes Provided
Overall Depth 3 in
Panel Cutout Diameter 30 mm

Details

Item Push Button Enclosure
Number of Columns 1
Material Carbon Steel
Number of Holes 4
NEMA Rating 12, 13
Color Gray
Includes Captive Cover Screws, Closed Cell Oil Resistant Gasket
Type Slimline
Standards cULus, UL Listed
Mounting Style External Plates
Features Fabricated from 14 gauge steel. Continuously welded seams ground smooth. Closed cell oil resistant neoprene gasket. External mounting plates, top and bottom of enclosure. Captivated cover screws thread into sealed wells. Standard "4-way" pushbutton holes accept all brands of oil-tight pushbuttons, switches, and pilot lights. Grounding provisions provided.
Listings UL, CSA
Mounting External Mounting Plates
Standard cULus
Certified Listed cULus
Application Designed to hold all standard brands of pushbuttons, switches, and pilot lights. Provides protection from dust, dirt, oil, and water. This "Slimline" model is designed for conditions where enclosures must fit within very limited areas.
Cubic Capacity 99 cu.in
Cover Type Pushbutton;Screw
Series PSL
Mounting Type External Mounting Plates
Construction Continuously Welded Seams
UL Listed Yes
Finish Type Polyester Powder
NEMA Enclosure Rating 12

Description

Push Button Enclosure, Number of Columns 1, Number of Holes 4, NEMA Rating 12, 13, Conduit Size No Conduit Entrance Holes Provided, Dimensions 10.75 in H x 2.50 in W x 2.50 in D, Hole Size 30 mm, Material Carbon Steel, Height 10.75 in, Width 2.5 in, Depth 2.5 in, Color Gray, Includes Captive Cover Screws, Closed Cell Oil Resistant Gasket, Type Slimline, Mounting Style External Plates, Standards cULus, UL Listed
