  11. Compressed Air Filter, 200 psi, 4.8 In. W
Wilkerson

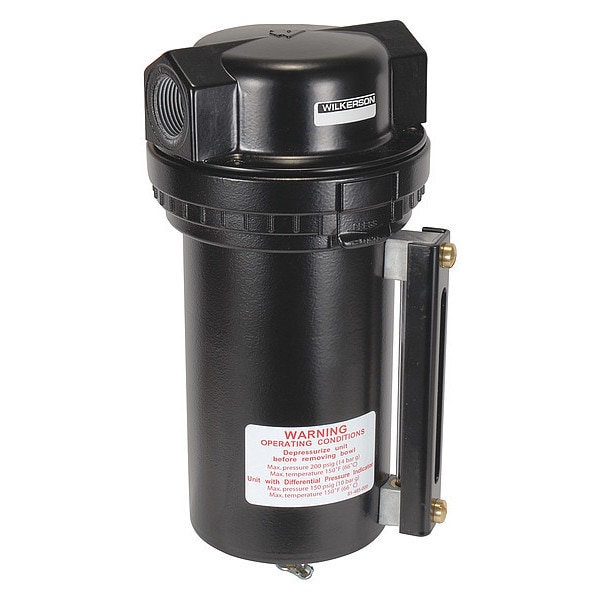

Compressed Air Filter, 200 psi, 4.8 In. W

Wilkerson Compressed Air Filter, 200 psi, 4.8 In. W F30-06-G00
Tap to zoom
Hover or click to zoom
$182.45
  • Size: Jumbo
  • Max. Incoming Pressure - Air Treatment: 200 psi
  • Drain Port Size: 3/4 in
See full product details
This item ships free.
Total: $182.45

Wilkerson #F30-06-G00 Specifications

  • Size: Jumbo
  • Max. Incoming Pressure - Air Treatment: 200 psi
  • Drain Port Size: 3/4 in
  • Bowl Size - Air Treatment: 26.0 oz
  • Pipe Size: 3/4" NPT
  • Bowl Material: Metal with Sight Gauge
  • Overall Height: 9 7/8 in
  • Drain Type: Manual
  • Bowl Material - Air Treatment: Metal with Sight Gauge
  • Connection Size - Air Treatment: 3/4 in NPT
  • Item: Compressed Air Filter
  • Item - Air Filters: General Purpose Filter
  • Filter Rating - Air Treatment: 5 micron
  • Max. Flow - Air Treatment: 260 cfm
  • Max. Temp.: 150 Degrees F
  • Max. Flow: 260 cfm
  • Size - Air Treatment: Jumbo
  • Max. Pressure: 200 psi
  • Filter Rating: 5 micron
  • Bowl Size: 26 oz.
  • Overall Width: 4 13/16 in
  • Sight Gauge Included: Yes
  • Filter Element Material: Polyethylene
  • Series: F30
  • System Location: Air Line
  • Filter Bowl Capacity: 2 oz
  • Filter Bowl Material: Metal
  • Maximum Operating Pressure: 200 psi
  • Filter Type (Broad from Filter Rating): Particulate
  • Filter Bowl Guard Included: Yes
  • Air Inlet Size: 3/4 in
  • Inlet Size: 3/4 in NPT
  • Minimum Operating Temperature: 32 Degrees F
  • Maximum Flow Rate: 316 cfm
  • Drain Included: Yes
  • Number of Air Outlets: 1
  • Weight: 5.5 lb
  • ISO Class: 3
  • Overall Depth: 4 5/8 in
  • Filter Type: Particulate
  • Maximum Operating Temperature: 150 Degrees F
  • Air Outlet Type: NPT
  • Pressure Drop: 5 psid
  • Filter Type (Broad from Filter Type): Particulate
  • Air Inlet Type: NPT
  • Body Material: Zinc
  • Seal Material: Fluorocarbon
  • For Fluid Type: Water
  • Air Outlet Size: 3/4 in
  • Number of Air Inlets: 1
  • For Substance Type: Water, Particulate Contamination
  • Country of Origin (subject to change): United States

Description

Compressed Air Filter, Filter Type Particulate, Air Inlet Size 3/4 in, Air Inlet Type NPT, Maximum Flow Rate 316 cfm, Maximum Operating Pressure 200 psi, Maximum Operating Temperature 150 Degrees F, Overall Width 4 13/16 in, Overall Height 9 7/8 in, Drain Included Yes, Filter Bowl Material Zinc, Drain Type Manual, Series F30, Air Outlet Size 3/4 in, Air Outlet Type NPT, Body Material Zinc, Filter Bowl Capacity 2 oz, Filter Bowl Guard Included Yes, Filter Element Material Polyethylene
