Wilkerson

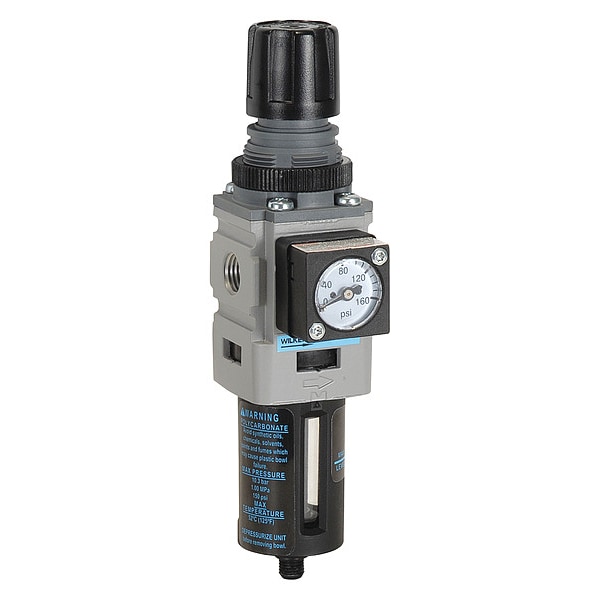

Filter-Regulator, Max. Incoming 150 psi

product price: $112.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Connection Size - Air Treatment 1/4 in NPT
  • Filter Rating - Air Treatment 5 micron
  • Max. Incoming Pressure - Air Treatment 150 psi
  • Max. Flow - Air Treatment 70 cfm
  • Adjustment Range - Air Treatment 0 to 125 psi
See all product information

Product Information

Dimensions

Connection Size - Air Treatment 1/4 in NPT
Size - Air Treatment Subcompact
Bowl Size - Air Treatment 0.4 oz
Gauge Port Size 1/8 in
Overall Height 6 13/16 in
Overall Width 1 5/8 in
Overall Depth 1 11/16 in
Air Outlet Size 1/4 in
Pressure Gauge Port Size 1/8 in
Air Inlet Size 1/4 in

Details

Item - Filter-Regulators Filter-Regulator
Filter Rating - Air Treatment 5 micron
Max. Incoming Pressure - Air Treatment 150 psi
Max. Flow - Air Treatment 70 cfm
Adjustment Range - Air Treatment 0 to 125 psi
Bowl Material - Air Treatment Polycarbonate with Guard
For Removal Of Particles, Water
Item Filter-Regulator
Includes Pressure Gauge
Replaces Wilkerson B08-02-FRG0-23
Max. Temp. 125 Degrees F
Filter Rating 5 micron
Standards ISO 8573-1: 1991 Class 3, ISO 8573-1: 2001 Class 6, ISO Class 3
Drain Type Automatic
Adjustment Knob Non Rising
Maximum Flow Rate 73 cfm
Maximum Regulated Pressure 125 psi
ISO Class 6
Adjustment Mechanism Material Acetal
Drain Part Compatibility GRP-96-716
Minimum Operating Temperature 14 Degrees F
Filter Bowl Material Plastic
Regulator Type Relieving
Adjustment Mechanism Knob
Pressure Drop 14.5 psi
For Fluid Type Particles, Water
Pressure Gauge Included Yes
Air Inlet Type NPT
Filter Bowl Guard Included Yes
Seal Material Nitrile
Filter Type Particulate
Number of Air Outlets 1
Modular Connection Modular Connection
For Substance Type Oil, Solid Particles, Water
Filter Element Material Polyethylene
Body Material Aluminum
Series B08
Pressure Gauge Port Type NPT
Number of Air Inlets 1
Minimum Regulated Pressure 0 psi
Drain Included Yes
Filter Bowl Capacity 0.4 oz
Maximum Operating Pressure 150 psi
Differential Pressure Indicator Included Yes
Air Outlet Type NPT
Maximum Operating Temperature 125 Degrees F
Weight 0.42 lb
System Location Air Line

Description

Filter-Regulator, Filter Bowl Material Plastic, Air Inlet Size 1/4 in, Air Inlet Type NPT, Maximum Flow Rate 73 cfm, Filter Rating 5 micron, Filter Type Particulate, Maximum Operating Pressure 150 psi, Drain Type Automatic, Pressure Gauge Included Yes, Body Material Aluminum, Overall Width 1 5/8 in, Series B08, Adjustment Mechanism Knob, Adjustment Mechanism Material Acetal, Air Outlet Size 1/4 in, Air Outlet Type NPT, Differential Pressure Indicator Included Yes, Drain Included Yes

Restrictions

  • WARNING: This product can expose you to chemicals including Dichloromethane (Methylene chloride), which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
