Shop WILKERSON

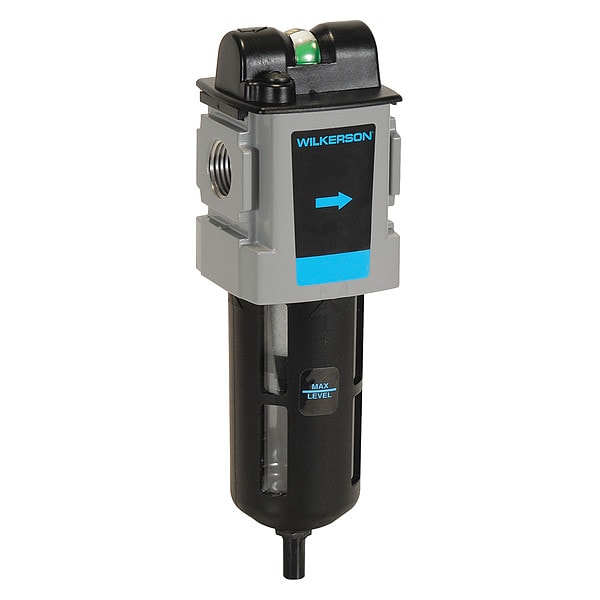

Oil Removal Filter, Compact Size

  • Mfr # M18-C2-CG00B

  • Zoro # G3723825

product price:
$
271.99
/ea
Free Shipping & Returns

Key Features

Item - Air Filters
Oil Removal Filter
Filter Rating - Air Treatment
0.01 micron
Connection Size - Air Treatment
1/4 in Tube
Max. Incoming Pressure - Air Treatment
150 psi
Max. Flow - Air Treatment
100 cfm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
M18-C2-CG00B
Zoro #
G3723825
UPC #
-
Country of Origin
United States

Dimensions

Connection Size - Air Treatment
1/4 in Tube
Size - Air Treatment
Compact
Bowl Size - Air Treatment
1.7 oz
Overall Width
2 3/8 in
Overall Height
8 3/8 in
Overall Depth
2 3/8 in
Air Outlet Size
1/4 in
Air Inlet Size
1/4 in

Details

Item - Air Filters
Oil Removal Filter
Filter Rating - Air Treatment
0.01 micron
Max. Incoming Pressure - Air Treatment
150 psi
Max. Flow - Air Treatment
100 cfm
Bowl Material - Air Treatment
Polycarbonate with Guard
For Removal Of
Aerosol, Mist, Oil Fog, Particles
Item
Oil Removal Filter
Includes
Differential Pressure Indicator
Max. Temp.
125 Degrees F
Filter Media
Borosilicate Cloth
Housing Material
Aluminum
Filter Rating
0.01 micron
Drain Type
Automatic
Replaces
Wilkerson M18-C2-CG00-23
Filter Type
Coalescing
Number of Air Inlets
1
System Location
Air Line
Air Inlet Type
NPT
For Substance Type
Oil Aerosol
Filter Bowl Guard Material
Plastic
Drain Included
Yes
Modular Connection
Modular Connection
Number of Air Outlets
1
Filter Bowl Guard Included
Yes
Body Material
Aluminum
Pressure Drop
3 psig
For Fluid Type
Oil
Maximum Flow Rate
36 cfm
ISO Class
1
Series
M18
Air Outlet Type
NPT
Filter Element Material
Borosilicate Cloth
Minimum Operating Temperature
-13 Degrees F
Filter Bowl Material
Polycarbonate
Maximum Operating Pressure
150 psi
Maximum Operating Temperature
125 Degrees F
Filter Bowl Capacity
1.72 oz
Seal Material
Nitrile
Weight
0.71 lb
Gauge Included
No

Description

Oil Removal Filter, Filter Type Coalescing, Air Inlet Size 1/4 in, Air Inlet Type NPT, Maximum Flow Rate 36 cfm, Maximum Operating Pressure 150 psi, Maximum Operating Temperature 125 Degrees F, Overall Width 2 3/8 in, Overall Height 8 3/8 in, Drain Included Yes, Filter Bowl Material Polycarbonate, Drain Type Automatic, Series M18, Air Outlet Size 1/4 in, Air Outlet Type NPT, Body Material Aluminum, Filter Bowl Capacity 1.72 oz, Filter Bowl Guard Included Yes, Filter Bowl Guard Material Plastic

Restrictions

WARNING: This product can expose you to chemicals including Dichloromethane (Methylene chloride), which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
