Wilkerson

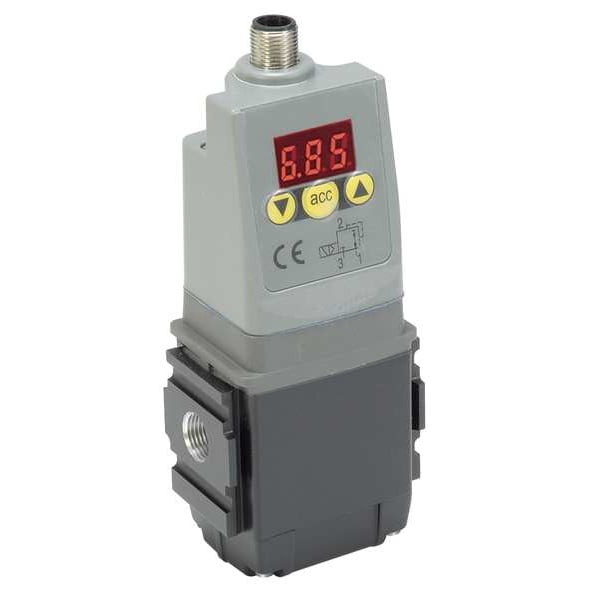

Proportional Regulator, 1/4In, 0-145PSI

product price: $828.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Connection Size - Air Treatment 1/4 in NPT
  • Max. Incoming Pressure - Air Treatment 150 psi
  • Max. Flow - Air Treatment 35 cfm
  • Adjustment Range - Air Treatment 0 to 145 psi
  • Input Voltage - Air Treatment 24V DC
See all product information

Product Information

Dimensions

Connection Size - Air Treatment 1/4 in NPT
Width (In.) 2.25 in
Port Size (In.) 1/4
Height (In.) 5.55 in
Overall Height 5 in
Overall Length 5 9/16 in
Overall Width 2 1/4 in
Overall Depth 1 9/16 in
Air Outlet Size 1/4 in
Outside Diameter 2 1/4 in
Air Inlet Size 1/4 in

Details

Item - Proportional Regulators Electronic Proportional Regulator
Item Proportional Regulator
Max. Incoming Pressure - Air Treatment 150 psi
Max. Flow - Air Treatment 35 cfm
Adjustment Range - Air Treatment 0 to 145 psi
Input Voltage - Air Treatment 24V DC
Indicator Integral LED
Max. Pressure (PSI) 150
Input Signal 0-10V or 4-20 mA
Adjustment Range (PSI) 0 to 145
Power Consumption 1.1 W
Enclosure IP65
Type Electronic
NPT (In.) 1/4
Max. Flow (CFM) 35
Temp. Range (F) 32 to 122 Degrees F
Input Voltage 24 V DC
Accuracy (%) +/-0.3%
Minimum Operating Temperature 32 Degrees F
Maximum Operating Temperature 122 Degrees F
Current 200 mA
Electrical Connection Type M12 Connector 4-Pole
Minimum Operating Pressure 7.3 psi
Number of Air Outlets 1
Maximum Flow Rate 35 cfm
Adjuster Mechanism Control Knob
Standards CE, EN 61000-6-1:2001, EN 61000-6-2:2001, EN 61000-6-3:2001, EN 61000-6-4:2001
Series ER09
Weight 0.64 lb
Number of Air Inlets 1
Maximum Pressure Control 145 psi
Air Outlet Type NPT
Enclosure Rating IP65
Accuracy +/-0.3%
Pressure Control Range 0 to 10 bar, 0 to 145 psi
Minimum Pressure Control 0 psi
Maximum Operating Pressure 152 psi
Control Signal 0 to 10V, 4 to 20 mA
Indicator Type High Visibility LED Display
Air Inlet Type NPT

Description

Proportional Regulator, Maximum Operating Pressure 152 psi, Minimum Operating Pressure 7.3 psi, Air Inlet Size 1/4 in, Air Inlet Type NPT, Enclosure Rating IP65, Electrical Connection Type M12 Connector 4-Pole, Accuracy +/-0.3 Percent, Adjuster Mechanism Control Knob, Air Outlet Size 1/4 in, Air Outlet Type NPT, Control Signal 0 to 10V, 4 to 20 mA, Current 200 mA, Indicator Type High Visibility LED Display, Input Voltage 24 V DC, Maximum Flow Rate 35 cfm
