Shop WILKINS

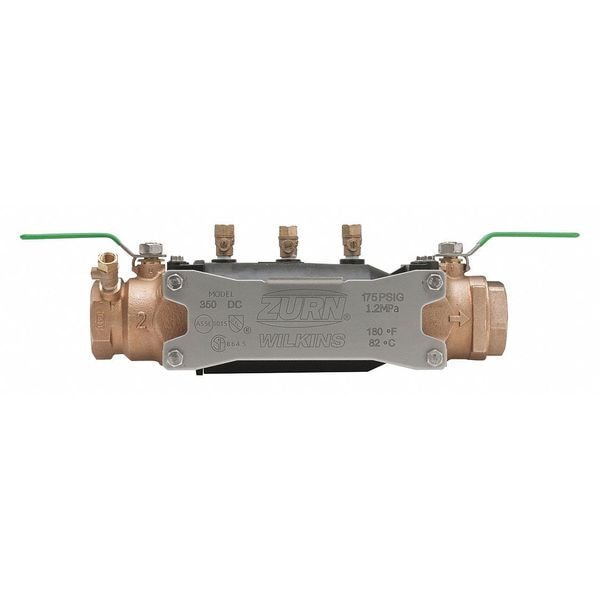

Backflow Preventer, 1-1/2" Size, 175 psi

  • Mfr # 112-350XL

  • Zoro # G3952623

product price:  $1,279.99
/ea
Free Shipping & Returns

Key Features

Body Material
Low Lead Cast Bronze
Temp. Range
33 Degrees to 180 Degrees F
Width
2 1/4 in
Pipe Size
1-1/2"
Standards
Approved by the Foundation for Cross-Connection Control and Hydraulic Research at the University of Southern California, ASSE 1015, AWWA C510, C-UL Classified, CSA B64.5, cUPC Listed, NSF/ANSI/CAN 61 and 372, UL Listed
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
112-350XL
Zoro #
G3952623
UPC #
612052071558
Country of Origin
China

Dimensions

Width
2 1/4 in
Pipe Size
1-1/2"
Length
15 1/4 in
Height
6 1/4 in
Size
1 1/2 in FIP
Connection Size - Side 1
1 1/2 in
Overall Height
6 in
Overall Width
6.25 in
Overall Length
15.25 in
Connection Size - Side 2
1 1/2 in
Nominal Valve Size
1 1/2 in

Details

Item
Backflow Preventer
Body Material
Low Lead Cast Bronze
Temp. Range
33 Degrees to 180 Degrees F
Standards
Approved by the Foundation for Cross-Connection Control and Hydraulic Research at the University of Southern California, ASSE 1015, AWWA C510, C-UL Classified, CSA B64.5, cUPC Listed, NSF/ANSI/CAN 61 and 372, UL Listed
Max. Temp.
180 Degrees F
Max. Pressure
175 psi
Connection
MNPT
Compliance
ASSE 1015, CSA B64.5, IAPMO, Low Lead Certified
Features
Low Lead Design is Suitable for Drinking Water, Patented Removable Pressure Vessel, Top Mounted Test Cocks Ease Installation
Series
Wilkins 350XL
Includes Freeze Sensor
No Freeze Sensor
Flow
150 gpm
Shut-Off Valve Included
Ball Valve
For Media
Water
Connection Type - Side 1
Flange
Spring Material
Stainless Steel
Handle Material
Stainless Steel
Backflow Preventer Type
Double Check Assembly (DC)
Maximum Pressure - Operating
175 psi
Connection Gender - Side 1
Female
Operating Temperature - Minimum
33 Degrees F
Hazard Protection Level
Low Health Hazard
Connection Gender - Side 2
Female
Connection Type - Side 2
Flange
Includes Strainer
No Strainer
Mounting Orientation
Horizontal, Vertical
Operating Temperature - Maximum
180 Degrees F
Valve Series
350XL

Description

Backflow Preventer,1-1/2" Size,175 psi

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
