  11. Backflow Preventer, 1 1/4 in, FMTC x FNPT

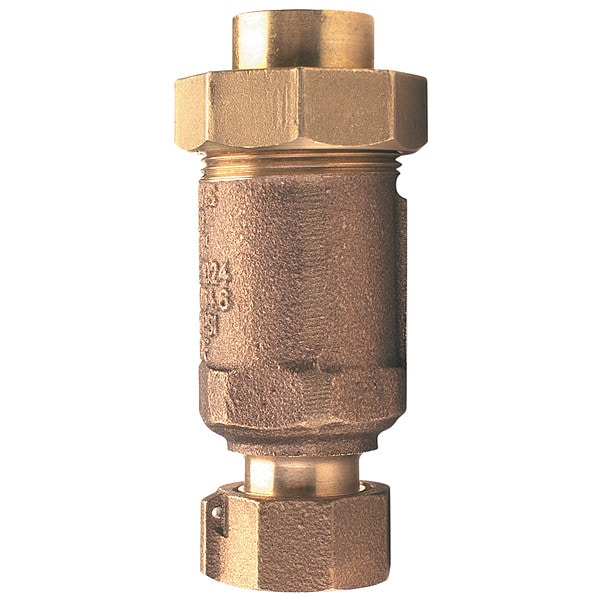

Wilkins Backflow Preventer, 1 1/4 in, FMTC x FNPT 114UFMX1UF-700XL - main

Backflow Preventer, 1 1/4 in, FMTC x FNPT

  • Mfr # 114UFMX1UF-700XL

  • Zoro # G508230104

product price: $195.99
/ea
Free Shipping & Returns

Key Features

Body Material
Bronze
Temp. Range
Up to 180 Degrees F
Width
1 3/4 in
Flow
70 gpm
Max. Pressure
175 psi
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
114UFMX1UF-700XL
Zoro #
G508230104
UPC #
612052239231
Country of Origin
Taiwan, Province of China

Dimensions

Width
1 3/4 in
Size
1 1/4 in
Length
4 3/4 in
Overall Height
2 in
Overall Width
1.75 in
Overall Length
4.75 in
Connection Size - Side 2
1 in
Nominal Valve Size
1 1/4 in
Connection Size - Side 1
1 1/4 in

Details

Item
Backflow Preventer
Body Material
Bronze
Temp. Range
Up to 180 Degrees F
Flow
70 gpm
Max. Pressure
175 psi
Spring Material
Stainless Steel
Standards
ASSE 1012, CSA, NSF/ANSI/CAN 61
Compliance
ASSE 1024, CSA, NSF/ANSI/CAN 61
Connection
FMTC x FNPT
Seat Material
Delrin
Features
Acceptable for use in Potable Water Systems, Horizontal or Vertical Installation, Low-Lead Law Compliant, Many different Inlet and Outlet Connections available
Max. Temp.
180 Degrees F
Field Testable
Not Field Testable
Mounting Orientation
Horizontal, Vertical
Operating Temperature - Minimum
33 Degrees F
For Media
Water
Connection Type - Side 1
NPT
Connection Gender - Side 1
Female
Maximum Pressure - Operating
175 psi
Connection Gender - Side 2
Female
Connection Type - Side 2
NPT
Operating Temperature - Maximum
180 Degrees F
Seal Material
Buna-N
Hazard Protection Level
Low Health Hazard
Valve Series
700XL

Description

Backflow Preventer, Size 1 1/4 in, Connection FMTC x FNPT, Body Material Bronze, Temp. Range Up to 180 Degrees F, Max. Temp. 180 Degrees F, Max. Pressure 175 psi, Width 1 3/4 in, Length 4 3/4 in, Features Acceptable for use in Potable Water Systems, Horizontal or Vertical Installation, Low-Lead Law Compliant, Many different Inlet and Outlet Connections available, Standards ASSE 1012, CSA, NSF/ANSI/CAN 61, Compliance ASSE 1024, CSA, NSF/ANSI/CAN 61

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
