  11. Backflow Preventer, 1 in, F Flange

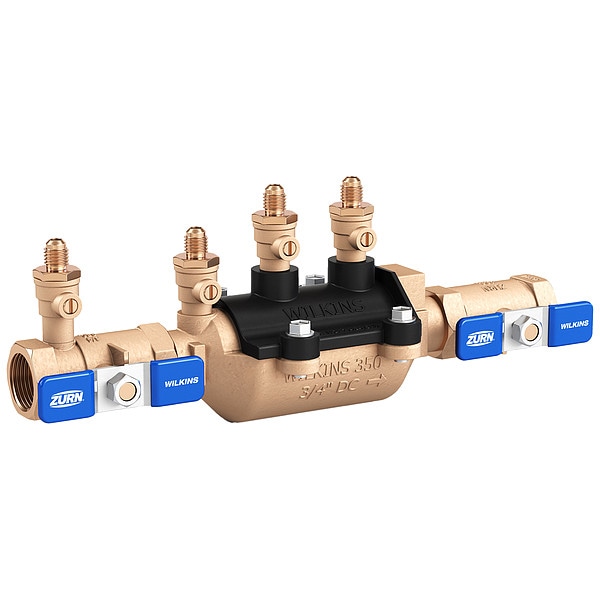

Wilkins Backflow Preventer, 1 in, F Flange 1-350FT - main

Backflow Preventer, 1 in, F Flange

  • Mfr # 1-350FT

  • Zoro # G508230081

product price: $349.99
/ea
Free Shipping & Returns

Key Features

Body Material
Bronze
Temp. Range
Up to 180 Degrees F
Width
4 1/8 in
Overall Height
5 in
Features
Durable UV Resistant Reinforced Nylon EZSwap Pressure Vessel Resists Corrosion and Mineral Build-upto Better withstand Harsh Outdoor Conditions, EZSwap Pressure Vessel can be Removed and Replaced in Seconds, Reducing Repair Cost and Water System Down Time, EZSwap Pressure Vessel is Serviceable Off-Line and Reusable, Allowing Maintenance and Repairs to be Performed in the Safety of the Work Truck or Shop, Labor Savings from Ease of Flushing with only One Person Saves upto 15 Minutes Per Installation, Quick and thorough Winterization with Blow-Out Accessory Prevents Costly Freeze Damage and Improves Productivity when Freeze is Quickly Approaching, Reduced Labor and Repair Kit Costs Yield Savings of 75% or More During the Backflow Life-Cycle
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1-350FT
Zoro #
G508230081
UPC #
612052087276
Country of Origin
China

Dimensions

Width
4 1/8 in
Overall Height
5 in
Height
5 in
Size
1 in
Length
12 1/4 in
Overall Width
4.13 in
Check Valve Length
7 in
Connection Size - Side 1
1 in
Connection Size - Side 2
1 in
Overall Length
12.25 in
Nominal Valve Size
1 in

Details

Item
Backflow Preventer
Body Material
Bronze
Temp. Range
Up to 180 Degrees F
Features
Durable UV Resistant Reinforced Nylon EZSwap Pressure Vessel Resists Corrosion and Mineral Build-upto Better withstand Harsh Outdoor Conditions, EZSwap Pressure Vessel can be Removed and Replaced in Seconds, Reducing Repair Cost and Water System Down Time, EZSwap Pressure Vessel is Serviceable Off-Line and Reusable, Allowing Maintenance and Repairs to be Performed in the Safety of the Work Truck or Shop, Labor Savings from Ease of Flushing with only One Person Saves upto 15 Minutes Per Installation, Quick and thorough Winterization with Blow-Out Accessory Prevents Costly Freeze Damage and Improves Productivity when Freeze is Quickly Approaching, Reduced Labor and Repair Kit Costs Yield Savings of 75% or More During the Backflow Life-Cycle
Compliance
ASSE 1015, AWWA C510, C-UL Classified, CSA B64.5, IAPMO, UL Classified
Flow
74 gpm
Spring Material
Stainless Steel
Standards
Approved by the Foundation for Cross-Connection Control and Hydraulic Research at the University of Southern California, ASSE 1015, AWWA C510, C-UL Classified, CSA B64.5, cUPC Listed, UL Listed
Max. Pressure
175 psi
Connection
FNPT
Max. Temp.
180 Degrees F
Shut-Off Valve Included
Ball Valve
Connection Type - Side 2
Flange
Mounting Orientation
Horizontal, Vertical
Maximum Pressure - Operating
175 psi
Connection Gender - Side 1
Female
Includes Freeze Sensor
No Freeze Sensor
Includes Strainer
No Strainer
Connection Gender - Side 2
Female
Operating Temperature - Minimum
33 Degrees F
Hazard Protection Level
Low Health Hazard
Backflow Preventer Type
Double Check Assembly (DC)
Operating Temperature - Maximum
180 Degrees F
Handle Material
Stainless Steel
Connection Type - Side 1
Flange
For Media
Water
Valve Series
350

Description

Backflow Preventer,1 in,F Flange

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
