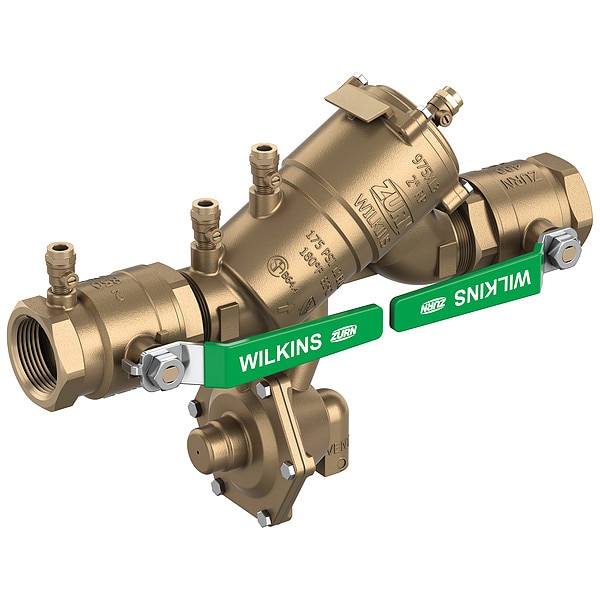

Wilkins Backflow Preventer, 2 in, FNPT 2-975XL3 - main

Backflow Preventer, 2 in, FNPT

  • Mfr # 2-975XL3

  • Zoro # G508230067

product price: $1,910.99
/ea
Free Shipping & Returns

Key Features

Body Material
Bronze
Temp. Range
33 Degrees F to 180 Degrees F
Width
5 7/16 in
Max. Temp.
180 Degrees F
Height
11 9/16 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
2-975XL3
Zoro #
G508230067
UPC #
612052317380
Country of Origin
China

Dimensions

Width
5 7/16 in
Height
11 9/16 in
Size
2 in
Length
17 7/8 in
Overall Height
11.56 in
Nominal Valve Size
2 in
Connection Size - Side 2
2 in
Connection Size - Side 1
2 in
Overall Width
5.44 in
Overall Length
17.88 in

Details

Item
Backflow Preventer
Body Material
Bronze
Temp. Range
33 Degrees F to 180 Degrees F
Max. Temp.
180 Degrees F
Standards
Approved by the Foundation for Cross-Connection Control and Hydraulic Research at the University of Southern California, ASSE, CSA, cUPC Listed, Lead Free (0.25% Max Weighted Average Lead Content), NSF/ANSI 61
Compliance
Approved by the Foundation for Cross Connection Control and Hydraulic Research at the University of Southern California, ASSE, CSA, cUPC, NSF/ANSI 61
Spring Material
Stainless Steel
Connection
FNPT
Max. Pressure
175 psi
Features
Compact and Shortest Bronze Small Backflow Valve on the Market Allowing for Installation Versatility, EZSwap(R) Modular Check with Top Access Speeds up Repairs and Replacements, Interlocking Connected Checks Provide 1/4 Turn to Access and Disassemble, Lead-Free (0.25% Max Weighted Average Lead Content), Low-Cost Repair Kits Extend the Lifespan at a Significantly Lower Cost, Test Ports Located on Valve's Centerline Make Install and Testing Easy
Flow
233 gpm
Connection Gender - Side 1
Male
Backflow Preventer Type
Reduced Pressure Assembly (RP)
Connection Type - Side 1
NPT
Shut-Off Valve Included
Ball Valve
Includes Strainer
No Strainer
Connection Type - Side 2
NPT
For Media
Water
Maximum Pressure - Operating
175 psi
Hazard Protection Level
High Health Hazard
Includes Freeze Sensor
No Freeze Sensor
Operating Temperature - Minimum
33 Degrees F
Connection Gender - Side 2
Male
Mounting Orientation
Horizontal
Handle Material
Stainless Steel
Operating Temperature - Maximum
180 Degrees F
Valve Series
975XL3

Description

Backflow Preventer,2 in,FNPT

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
