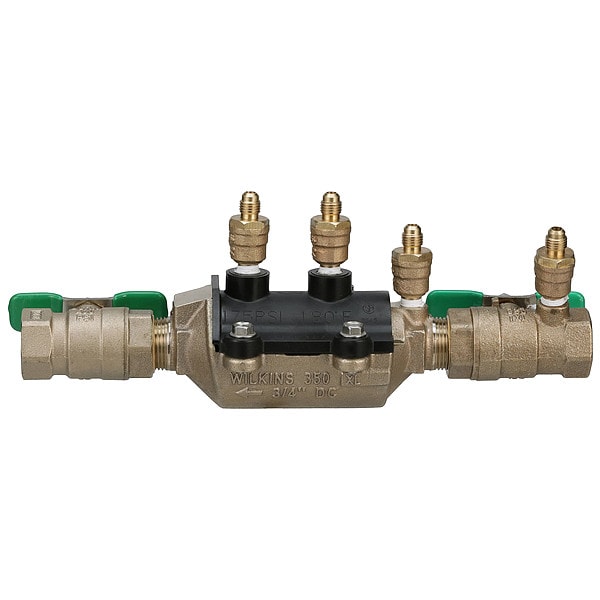

Wilkins Backflow Preventer, 3/4 in, FNPT 34-350XLFT - main

Backflow Preventer, 3/4 in, FNPT

  • Mfr # 34-350XLFT

  • Zoro # G708230065

product price: $448.99
/ea
Free Shipping & Returns

Key Features

Body Material
Bronze
Temp. Range
Up to 180 Degrees F
Width
3 3/4 in
Size
3/4 in
Connection
FNPT
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
34-350XLFT
Zoro #
G708230065
UPC #
612052071985
Country of Origin
United States

Dimensions

Width
3 3/4 in
Size
3/4 in
Height
4 1/4 in
Length
11 in
Overall Height
4.25 in
Overall Width
3.75 in
Overall Length
11 in
Check Valve Length
6 5/8 in
Connection Size - Side 2
3/4 in
Nominal Valve Size
3/4 in
Connection Size - Side 1
3/4 in

Details

Item
Backflow Preventer
Body Material
Bronze
Temp. Range
Up to 180 Degrees F
Connection
FNPT
Features
Blow Out Flush Fitting Available, Low-Lead Design is Suitable for Drinking Water, Low-Lead Law Compliant, Patented Removable Pressure Vessel, Top-Mounted Test Cocks Ease Installations
Max. Temp.
180 Degrees F
Max. Pressure
175 psi
Compliance
Approved by the Foundation for Cross Connection Control and Hydraulic Research at the University of Southern California, ASSE, CSA, cUPC, NSF/ANSI 61
Flow
43 gpm
Standards
Approved by the Foundation for Cross-Connection Control and Hydraulic Research at the University of Southern California, ASSE 1015, AWWA C510, C-UL Classified, CSA B64.5, cUPC Listed, NSF/ANSI/CAN 61 and 372, UL Listed
Spring Material
Stainless Steel
Shut-Off Valve Included
Ball Valve
Includes Freeze Sensor
No Freeze Sensor
Connection Gender - Side 2
Female
Hazard Protection Level
Low Health Hazard
Operating Temperature - Maximum
180 Degrees F
Handle Material
Stainless Steel
Connection Type - Side 1
NPTF
Maximum Pressure - Operating
175 psi
Includes Strainer
No Strainer
Connection Type - Side 2
NPTF
Operating Temperature - Minimum
33 Degrees F
Mounting Orientation
Horizontal, Vertical
For Media
Water
Connection Gender - Side 1
Female
Backflow Preventer Type
Double Check Assembly (DC)
Valve Series
350XL

Description

Backflow Preventer,3/4 in,FNPT

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
