Shop WILKINS

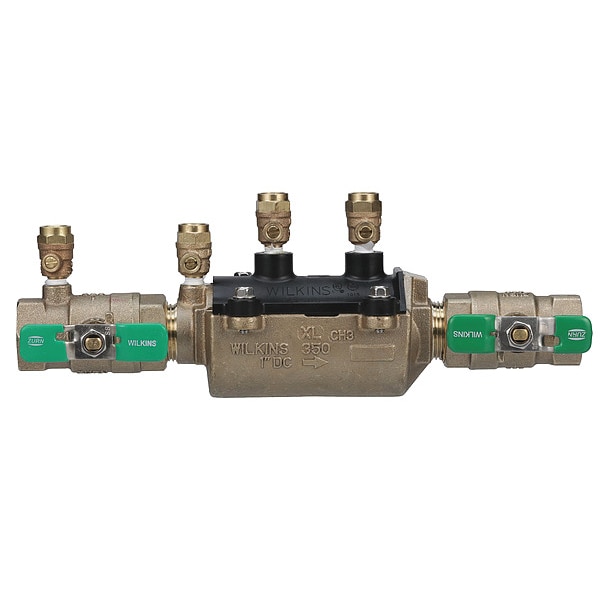

Backflow Preventer1"Size F Flange175 psi

  • Mfr # 1-350XL

  • Zoro # G3952879

product price:  $491.99
/ea
Free Shipping & Returns

Key Features

Body Material
Low Lead Cast Bronze
Temp. Range
33 Degrees to 180 Degrees F
Width
1 3/4 in
Pipe Size
1"
Max. Pressure
175 psi
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
1-350XL
Zoro #
G3952879
UPC #
612052087184
Country of Origin
China

Dimensions

Width
1 3/4 in
Pipe Size
1"
Size
1 in
Length
12 1/4 in
Height
4 1/8 in
Overall Length
12.25 in
Overall Width
4.13 in
Check Valve Length
7 in
Nominal Valve Size
1 in
Overall Height
5 in
Connection Size - Side 1
1 in
Connection Size - Side 2
1 in
Wire Rope Length
12.25 in

Details

Item
Backflow Preventer
Body Material
Low Lead Cast Bronze
Temp. Range
33 Degrees to 180 Degrees F
Max. Pressure
175 psi
Connection
MNPT
Series
Wilkins 350XL
Compliance
ASSE 1015, CSA B64.5, IAPMO, Low Lead Certified
Max. Temp.
180 Degrees F
Features
Low Lead Design is Suitable for Drinking Water, Patented Removable Pressure Vessel, Top Mounted Test Cocks Ease Installation
Standards
Approved by the Foundation for Cross-Connection Control and Hydraulic Research at the University of Southern California, ASSE 1015, AWWA C510, C-UL Classified, CSA B64.5, cUPC Listed, the requirements of NSF/ANSI/CAN 61 and 372, UL Listed
Operating Temperature - Maximum
180 Degrees F
Operating Temperature - Minimum
33 Degrees F
Mounting Orientation
Horizontal, Vertical
Maximum Pressure - Operating
175 psi
Connection Type - Side 1
Flange
Backflow Preventer Type
Double Check Assembly (DC)
Includes Freeze Sensor
No Freeze Sensor
Handle Material
Stainless Steel
Shut-Off Valve Included
Ball Valve
Includes Strainer
No Strainer
Flow
74 gpm
For Media
Water
Spring Material
Stainless Steel
Connection Gender - Side 2
Female
Hazard Protection Level
Low Health Hazard
Connection Type - Side 2
Flange
Connection Gender - Side 1
Female
Valve Series
350XL

Description

Backflow Preventer1"Size F Flange175 psi
