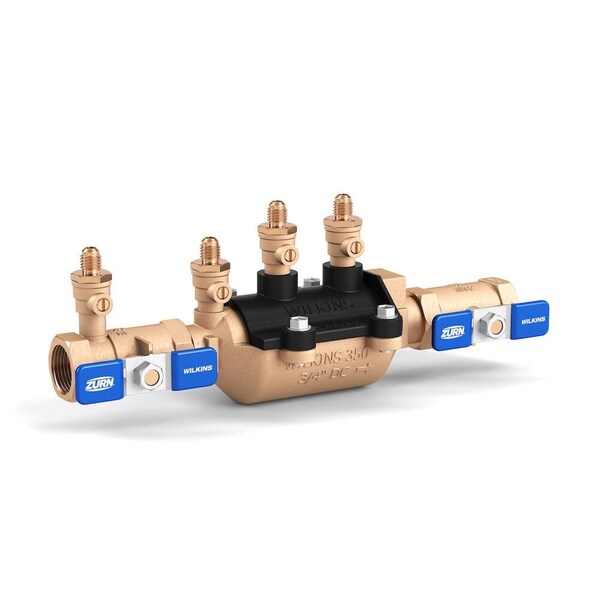

Wilkins Double Check Backflow Preventer 34-350Ft 34-350FT - main

Double Check Backflow Preventer 34-350Ft

  • Mfr # 34-350FT

  • Zoro # G7510070

product price: $317.99
/ea
Item requires special delivery charges. A $110.00 per item surcharge will be applied.

Key Features

Body Material
Bronze
Width
4.6
Features
Flush Tool (FLUSH) provides easy line flushing, saving up to 15 minutes per installation
Seat Material
Silicone
Standards
Approved by the Foundation for Cross-Connection Control and Hydraulic Research at the University of Southern California, ASSE Listed 1015, AWWA Compliant C510, C-UL Classified, CSA Certified B64.5, cUPC Listed, UL Classified
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
34-350FT
Zoro #
G7510070
UPC #
612052087269
Country of Origin
United States

Dimensions

Width
4.6
Overall Height
4.25 in
Height
5.6
Length
12
Overall Width
3.75 in
Overall Length
15.13 in
Connection Size - Side 2
3/4 in
Nominal Valve Size
3/4 in
Check Valve Length
6 5/8 in
Connection Size - Side 1
3/4 in

Details

Item
Double Check Backflow Preventer 34-350Ft
Body Material
Bronze
Features
Flush Tool (FLUSH) provides easy line flushing, saving up to 15 minutes per installation
Seat Material
Silicone
Standards
Approved by the Foundation for Cross-Connection Control and Hydraulic Research at the University of Southern California, ASSE Listed 1015, AWWA Compliant C510, C-UL Classified, CSA Certified B64.5, cUPC Listed, UL Classified
Material of Construction
Stainless steel and durable, UV-resistant reinforced nylon construction offers corrosion-resistance and quick winterization
Spring Material
Stainless Steel
Application
Plumbing
Operating Temperature - Minimum
33 Degrees F
Connection Type - Side 1
Flange
Connection Gender - Side 1
Female
Connection Type - Side 2
Flange
Includes Freeze Sensor
No Freeze Sensor
Seal Material
Buna-N
Backflow Preventer Type
Double Check Assembly (DC)
Handle Material
Stainless Steel
For Media
Water
Shut-Off Valve Included
Ball Valve
Connection Gender - Side 2
Female
Operating Temperature - Maximum
180 Degrees F
Hazard Protection Level
Low Health Hazard
Maximum Pressure - Operating
175 psi
Mounting Orientation
Horizontal, Vertical
Includes Strainer
No Strainer
Valve Series
350

Description

Double Check Backflow Preventer 34-350Ft
