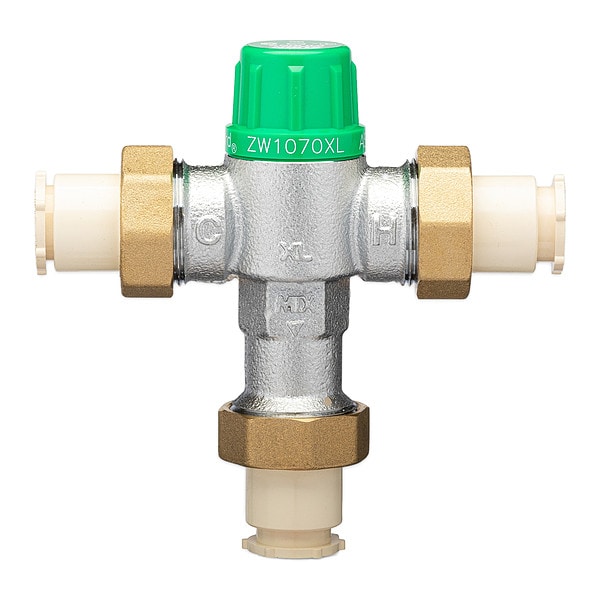

Wilkins Mixing Valve, Low Lead Bronze, 5-7/8 In. H 12-ZW1070XLCPVC - main

Mixing Valve, Low Lead Bronze, 5-7/8 In. H

  • Mfr # 12-ZW1070XLCPVC

  • Zoro # G5064543

product price:  $297.99
/ea
Free Shipping & Returns

Key Features

Inlet Size
1/2 in
Outlet Type
FNPT
Flow Rate
0.5 to 10 gpm
Inlet Type
FNPT
Body Material
Cast Bronze
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
12-ZW1070XLCPVC
Zoro #
G5064543
UPC #
612052103419
Country of Origin
Taiwan, Province of China

Dimensions

Inlet Size
1/2 in
Overall Width
6 3/16 in
Overall Height
5 7/8 in
Outlet Size
1/2 in
Size
1/2"
Overall Length
6 3/16 in
Inlet Connection Size - Hot
1/2 in
Outlet Connection Size
1/2 in
Inlet Connection Size - Cold
1/2 in

Details

Item
Thermostatic Mixing Valve
Outlet Type
FNPT
Flow Rate
0.5 to 10 gpm
Inlet Type
FNPT
Body Material
Cast Bronze
Max. Pressure
145 psi
Temp. Range
95 Degrees to 115 Degrees F
Inlet Temperature (Hot)
120 Degrees to 195 Degrees F
Inlet Temperature (Cold)
40 Degrees to 75 Degrees F
Standards
ASSE 1070, CSA B125.70, cUPC, NSF/ANSI/CAN 61-9
Connection
FNPT
Material of Construction
Low Lead Bronze
Valve Type
Thermostatic
Includes Temperature Gauge
Temperature Gauge Not Included
Operating Pressure - Minimum
125 psi
Inlet Temperature - Maximum Cold
80 Degrees F
For Media
Hot Water, Water
Operating Temperature - Maximum Outlet
115 Degrees F
Inlet Temperature - Minimum Hot
120 Degrees F
Inlet Temperature - Minimum Cold
39 Degrees F
Inlet Connection Gender - Hot
Female
Inlet Connection Type - Cold
NPT
Outlet Connection Type
NPT
Seal Material
FKM
Inlet Temperature - Maximum Hot
195 Degrees F
Inlet Connection Gender - Cold
Female
Operating Pressure - Maximum
145 psi
Operating Temperature - Minimum Outlet
95 Degrees F
Inlet Connection Type - Hot
NPT

Description

Thermostatic Mixing Valve, Body Material Cast Bronze, Flow Rate 0.5 to 10 gpm, Inlet Type FNPT, Outlet Type FNPT, Inlet Size 1/2 in, Outlet Size 1/2 in, Temp. Range 95 Degrees to 115 Degrees F, Max. Pressure 145 psi, Overall Height 5 7/8 in, Overall Width 6 3/16 in, Inlet Temperature (Cold) 40 Degrees to 75 Degrees F, Inlet Temperature (Hot) 120 Degrees to 195 Degrees F, Standards ASSE 1070, CSA B125.70, cUPC, NSF/ANSI/CAN 61-9
