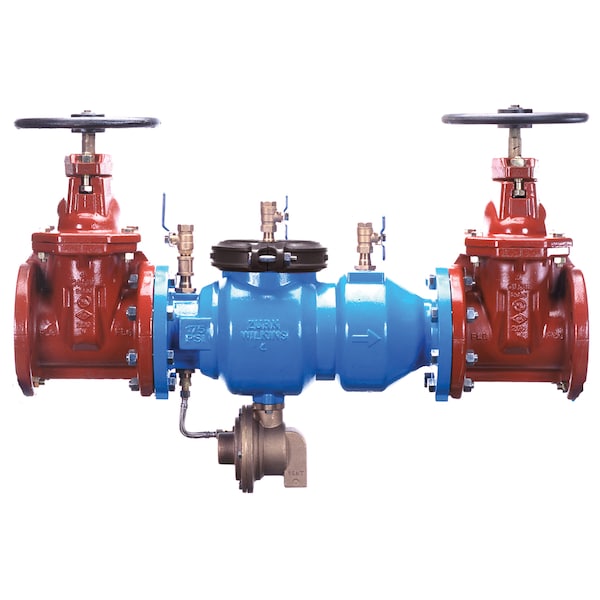

Reduced Pressure Principle Backflow Prev

  • Mfr # 4-375

  • Zoro # G7507709

product price:
$
6,721.99
/ea
Additional $150.00 delivery surcharge applies per item.
See details

Key Features

Body Material
Ductile Iron
Overall Height
33.5 in
Seat Material
Plastic
Spring Material
Stainless Steel
Standards
ASSE Listed 1013, AWWA Compliant C511, C-UL Classified, CSA Certified B64.4, cUPC Listed, FM Approved, NSF/ANSI/CAN 61, NYC MEA 49-01-M Vol 2, UL Classified
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
4-375
Zoro #
G7507709
UPC #
612052044453
Country of Origin
United States

Dimensions

Overall Height
33.5 in
Overall Width
12.5 in
Overall Length
37.63 in
Connection Size - Side 2
4 in
Check Valve Length
19 1/2 in
Connection Size - Side 1
4 in
Nominal Valve Size
4 in
Wire Rope Length
37.63 in

Details

Item
Reduced Pressure Principle Backflow Prev
Body Material
Ductile Iron
Seat Material
Plastic
Spring Material
Stainless Steel
Standards
ASSE Listed 1013, AWWA Compliant C511, C-UL Classified, CSA Certified B64.4, cUPC Listed, FM Approved, NSF/ANSI/CAN 61, NYC MEA 49-01-M Vol 2, UL Classified
Connection Type - Side 1
Flange
Hazard Protection Level
High Health Hazard
Maximum Pressure - Operating
175 psi
Includes Strainer
No Strainer
Mounting Orientation
Horizontal
Connection Type - Side 2
Flange
Includes Freeze Sensor
No Freeze Sensor
Shut-Off Valve Included
NRS Gate Valve
Operating Temperature - Maximum
140 Degrees F
Operating Temperature - Minimum
33 Degrees F
Seal Material
Buna-N, EPDM
Backflow Preventer Type
Reduced Pressure Assembly (RP)
For Media
Water
Valve Series
375

Description

Reduced Pressure Principle Backflow Prev

Restrictions
