Shop WILKINS

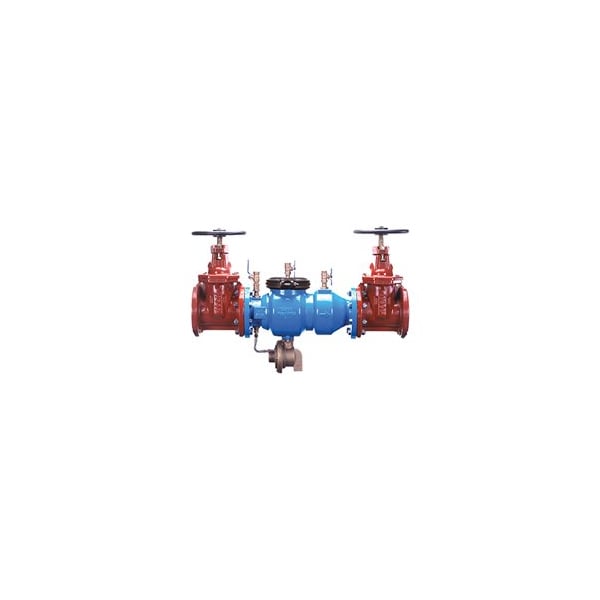

Reduced Pressure Principle Backflow Prev

  • Mfr # 6-375

  • Zoro # G7510280

product price:
$
12,487.99
/ea
Additional $200.00 delivery surcharge applies per item.
See details

Key Features

Body Material
Ductile Iron
Seat Material
Plastic
Spring Material
Stainless Steel
Standards
ASSE Listed 1013, AWWA Compliant C511, C-UL Classified, CSA Certified B64.4, cUPC Listed, FM Approved, NSF/ANSI/CAN 61, NYC MEA 49-01-M Vol 2, UL Classified
Series
375
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
6-375
Zoro #
G7510280
UPC #
612052044712
Country of Origin
United States

Dimensions

Overall Height
42.88 in
Overall Width
16 in
Overall Length
44.63 in
Connection Size - Side 1
6 in
Check Valve Length
23 1/2 in
Nominal Valve Size
6 in
Connection Size - Side 2
6 in
Wire Rope Length
44.63 in
Length
44.63 in

Details

Item
Reduced Pressure Principle Backflow Prev
Body Material
Ductile Iron
Seat Material
Plastic
Spring Material
Stainless Steel
Standards
ASSE Listed 1013, AWWA Compliant C511, C-UL Classified, CSA Certified B64.4, cUPC Listed, FM Approved, NSF/ANSI/CAN 61, NYC MEA 49-01-M Vol 2, UL Classified
Series
375
Brand & Series
ZURN 375
Valve Model Feature
Quarter-Turn Ball Valve
Operating Temperature - Maximum
140 Degrees F
Seal Material
Buna-N, EPDM
For Media
Water
Maximum Pressure - Operating
175 psi
Connection Type - Side 2
Flange
Backflow Preventer Type
Reduced Pressure Assembly (RP)
Connection Type - Side 1
Flange
Mounting Orientation
Horizontal
Shut-Off Valve Included
NRS Gate Valve
Includes Strainer
No Strainer
Includes Freeze Sensor
No Freeze Sensor
Hazard Protection Level
High Hazard
Operating Temperature - Minimum
33 Degrees F
Valve Series
375

Description

Reduced Pressure Principle Backflow Prev
