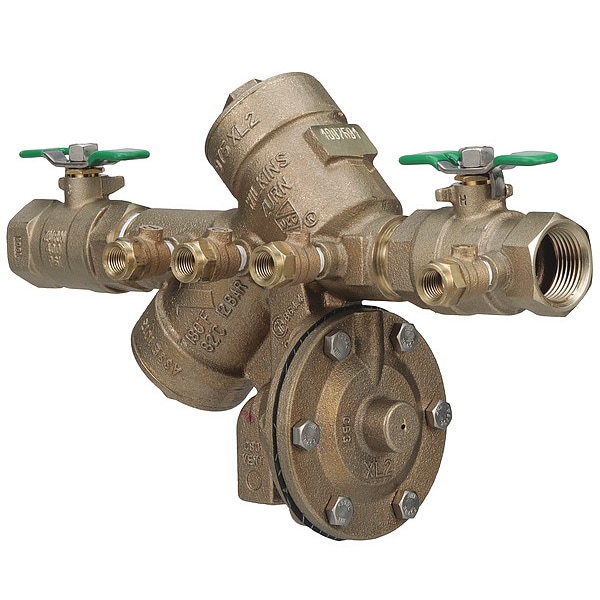

Wilkins Reduced Pressure Zone Backflow Preventer 1-975XL2 - main

Reduced Pressure Zone Backflow Preventer

  • Mfr # 1-975XL2

  • Zoro # G5064446

product price: $1,139.99
/ea
Free Shipping & Returns

Key Features

Body Material
Low Lead Cast Bronze
Temp. Range
33 Degrees to 180 Degrees F
Width
5 1/8 in
Pipe Size
1"
Series
Wilkins 975XL2
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1-975XL2
Zoro #
G5064446
UPC #
612052069623
Country of Origin
China

Dimensions

Width
5 1/8 in
Pipe Size
1"
Length
13 in
Size
1 in
Overall Height
8.5 in
Overall Width
5.13 in
Overall Length
13 in
Nominal Valve Size
1 in
Connection Size - Side 2
1 in
Connection Size - Side 1
1 in
Check Valve Length
7 3/4 in

Details

Item
Reduced Pressure Zone Backflow Preventer
Body Material
Low Lead Cast Bronze
Temp. Range
33 Degrees to 180 Degrees F
Series
Wilkins 975XL2
Max. Temp.
180 Degrees F
Connection
FNPT
Max. Pressure
175 psi
Standards
Annex G, Approved By The Foundation for Cross Connection Control and Hydraulic Research At The University of Southern California, ASSE Listed 1013, CSA, Lead Plumbing Law Certified By IAPMO R&T, NSF-Standard 61
Compliance
ASSE 1013, C511
Material of Construction
Low Lead Cast Bronze
Flow
80 gpm
Spring Material
Stainless Steel
Includes Freeze Sensor
No Freeze Sensor
Operating Temperature - Maximum
180 Degrees F
Maximum Pressure - Operating
175 psi
Includes Strainer
No Strainer
Handle Material
Stainless Steel
Operating Temperature - Minimum
33 Degrees F
For Media
Water
Hazard Protection Level
High Health Hazard
Shut-Off Valve Included
Ball Valve
Connection Gender - Side 2
Female
Connection Gender - Side 1
Female
Mounting Orientation
Horizontal
Connection Type - Side 1
NPTF
Connection Type - Side 2
NPTF
Backflow Preventer Type
Reduced Pressure Assembly (RP)
Valve Series
975XL2

Description

Reduced Pressure Zone Backflow Preventer

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
