Shop WILKINS

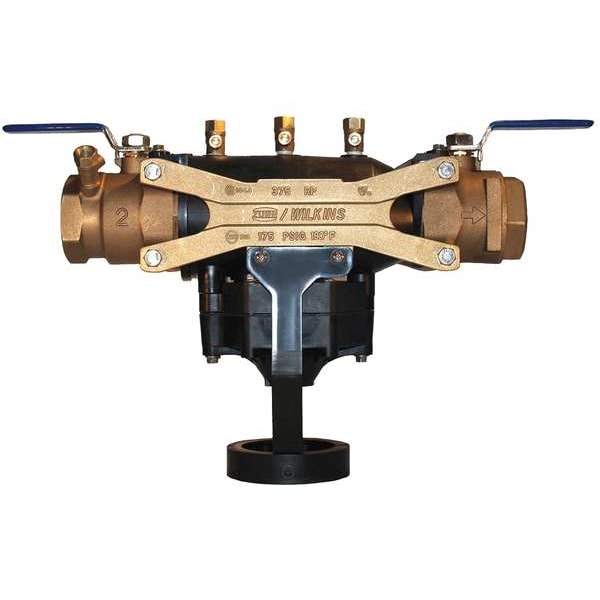

Reduced Pressure Zone Backflow Preventer

  • Mfr # 112-375

  • Zoro # G1747392

product price:
$
1,332.99
/ea
Additional $50.00 delivery surcharge applies per item.
See details

Key Features

Body Material
Cast Bronze, Copper Alloy Sand Castings
Temp. Range
33 Degrees to 180 Degrees F
Width
3 3/4 in
Pipe Size
1-1/2"
Connection
FNPT
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
112-375
Zoro #
G1747392
UPC #
612052071626
Country of Origin
United States

Dimensions

Width
3 3/4 in
Pipe Size
1-1/2"
Size
1 1/2 in
Length
15 1/4 in
Overall Height
9.5 in
Overall Width
9 in
Overall Length
15.25 in
Connection Size - Side 1
1 1/2 in
Nominal Valve Size
1 1/2 in
Connection Size - Side 2
1 1/2 in
Wire Rope Length
15.25 in

Details

Item
Reduced Pressure Zone Backflow Preventer
Body Material
Cast Bronze, Copper Alloy Sand Castings
Temp. Range
33 Degrees to 180 Degrees F
Connection
FNPT
Series
Wilkins 375
Standards
Approved by the Foundation for Cross-Connection Control and Hydraulic Research at the University of Southern California, ASSE 1013, AWWA C511, CSA B64.4, cUPC Listed
Max. Temp.
180 Degrees F
Max. Pressure
175 psi
Compliance
C-UL, CSA, FM, IAPMO, UL
Material of Construction
Bronze Valve Body And Shut Off Valves, Composite Housing And Check Modules
Flow
156.5 gpm
Spring Material
Stainless Steel
Connection Type - Side 1
Flange
Shut-Off Valve Included
Ball Valve
Mounting Orientation
Horizontal, Vertical
For Media
Water
Connection Type - Side 2
Flange
Includes Freeze Sensor
No Freeze Sensor
Backflow Preventer Type
Reduced Pressure Assembly (RP)
Maximum Pressure - Operating
175 psi
Operating Temperature - Maximum
180 Degrees F
Check Mechanism Material
Plastic
Includes Strainer
No Strainer
Hazard Protection Level
High Health Hazard
Operating Temperature - Minimum
33 Degrees F
Valve Series
375

Description

Backflow Preventer, Reduced Pressure Principle, Size 1 1/2 In, FNPT X FNPT Connection, Material of Construction Bronze Valve Body And Shut Off Valves, Composite Housing And Check Modules, Temp. Range 33-180 F, Max. Temp. 180 F, Max. Pressure 175 PSI, Width 3 3/4 In., Length 15 1/4 In., Standards ASSE 1013, Compliance IAPMO, CSA, UL,C-UL, FM

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
