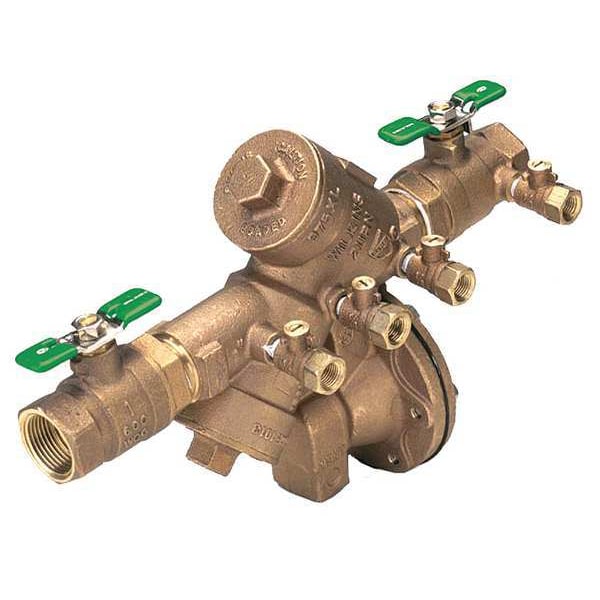

Wilkins Reduced Pressure Zone Backflow Preventer 2-975XL2 - main

Reduced Pressure Zone Backflow Preventer

  • Mfr # 2-975XL2

  • Zoro # G5064455

product price: $2,212.99
/ea
Free Shipping & Returns

Key Features

Body Material
Low Lead Cast Bronze
Temp. Range
33 Degrees to 180 Degrees F
Width
6-1/4"
Pipe Size
2"
Max. Pressure
175 psi
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
2-975XL2
Zoro #
G5064455
UPC #
612052069708
Country of Origin
China

Dimensions

Width
6-1/4"
Pipe Size
2"
Length
18-1/2"
Size
2"
Overall Height
11.75 in
Overall Width
6.25 in
Overall Length
18.5 in
Connection Size - Side 1
2 in
Connection Size - Side 2
2 in
Nominal Valve Size
2 in
Check Valve Length
11 in

Details

Item
Reduced Pressure Zone Backflow Preventer
Body Material
Low Lead Cast Bronze
Temp. Range
33 Degrees to 180 Degrees F
Max. Pressure
175 psi
Series
Wilkins 975XL2
Standards
ASSE Listed 1013, Annex G, Approved By The Foundation for Cross Connection Control and Hydraulic Research At The University of Southern California, CSA, NSF-Standard 61, Lead Plumbing Law Certified By IAPMO R&T
Connection
FNPT
Max. Temp.
180 Degrees F
Compliance
ASSE 1013, C511
Material of Construction
Low Lead Cast Bronze
Connection Type - Side 2
NPTF
Spring Material
Stainless Steel
Connection Type - Side 1
NPTF
For Media
Water
Operating Temperature - Maximum
180 Degrees F
Mounting Orientation
Horizontal
Connection Gender - Side 1
Female
Handle Material
Stainless Steel
Operating Temperature - Minimum
33 Degrees F
Connection Gender - Side 2
Female
Hazard Protection Level
High Health Hazard
Includes Strainer
No Strainer
Includes Freeze Sensor
No Freeze Sensor
Maximum Pressure - Operating
175 psi
Backflow Preventer Type
Reduced Pressure Assembly (RP)
Flow
225 gpm
Shut-Off Valve Included
Ball Valve
Valve Series
975XL2

Description

Reduced Pressure Zone Backflow Preventer

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
