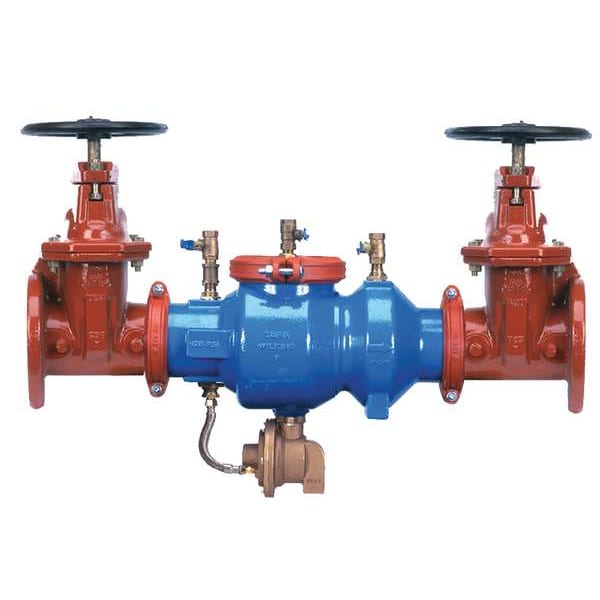

Reduced Pressure Zone Backflow Preventer

  • Mfr # 3-375A

  • Zoro # G2844396

product price:  $5,917.99
/ea
Additional $135.00 delivery surcharge applies per item.
See details

Key Features

Body Material
Ductile Iron
Temp. Range
33 Degrees to 140 Degrees F
Width
11 3/4 in
Pipe Size
3"
Max. Pressure
175 psi
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
3-375A
Zoro #
G2844396
UPC #
612052073132
Country of Origin
United States

Dimensions

Width
11 3/4 in
Pipe Size
3"
Length
36 1/8 in
Size
3 in
Overall Height
29.88 in
Overall Width
11.75 in
Overall Length
36.13 in
Connection Size - Side 1
3 in
Check Valve Length
20 1/8 in
Nominal Valve Size
3 in
Connection Size - Side 2
3 in
Wire Rope Length
36.13 in

Details

Item
Reduced Pressure Zone Backflow Preventer
Body Material
Ductile Iron
Temp. Range
33 Degrees to 140 Degrees F
Max. Pressure
175 psi
Standards
Approved by the Foundation for Cross-Connection Control and Hydraulic Research at the University of Southern California, ASSE 1013, AWWA C511, AWWA C550, C-UL Classified, CSA B64.4, cUPC Listed, FM, NSF/ANSI/CAN, NYC MEA 484-04-M, UL Listed
Compliance
C-UL, CSA, FM, IAPMO, UL
Max. Temp.
140 Degrees F
Series
Wilkins 375
Connection
Flanged
Material of Construction
Epoxy Coated Ductile Iron Body
Flow
478.5 gpm
Spring Material
Stainless Steel
Seal Material
EPDM
Includes Strainer
No Strainer
Connection Type - Side 1
Flange
Mounting Orientation
Horizontal, Vertical
Operating Temperature - Minimum
33 Degrees F
Operating Temperature - Maximum
140 Degrees F
Backflow Preventer Type
Reduced Pressure Assembly (RP)
Connection Type - Side 2
Flange
Check Mechanism Material
Plastic
Maximum Pressure - Operating
175 psi
Includes Freeze Sensor
No Freeze Sensor
Shut-Off Valve Included
NRS Gate Valve
Hazard Protection Level
High Health Hazard
For Media
Water
Valve Series
375A

Description

Backflow Preventer, Reduced Pressure Principle, Size 3 In, Flanged x Flanged Connection, Material of Construction Epoxy Coated Ductile Iron Body, Temp. Range 33-140 F, Max. Temp. 140 F, Max. Pressure 175 PSI, Width 11 3/4 In., Length 36 1/8 In., Standards ASSE 1013, Compliance IAPMO, CSA, UL,C-UL, FM
