Shop WILKINS

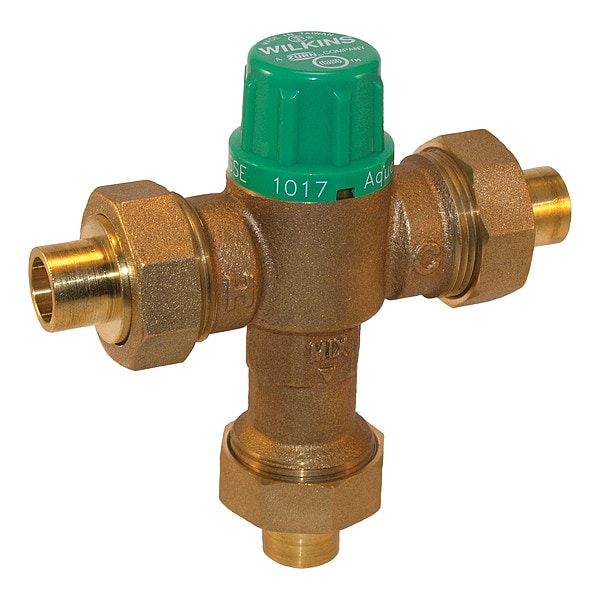

Tempering Mixing Valve, 3/4 in Inlet

  • Mfr # 34-ZW1017XL
  • Zoro # G608230363
product price:
$
321.99
/ea
Free Shipping & Returns

Key Features

Inlet Size
3/4 in
Outlet Type
FNPT
Flow Rate
0.5 gpm to 18 gpm
Inlet Type
FNPT
Compliance
ANSI 61-9, ASSE 1017, ASTM B 584, ASTM B 927, CSA, IAPMO, NSF, UNS C27450, XL Lead Free
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
34-ZW1017XL
Zoro #
G608230363
UPC #
612052075136
Country of Origin
Taiwan, Province of China
Item
Thermostatic Mixing Valve
Outlet Type
FNPT
Flow Rate
0.5 gpm to 18 gpm
Inlet Type
FNPT
Compliance
ANSI 61-9, ASSE 1017, ASTM B 584, ASTM B 927, CSA, IAPMO, NSF, UNS C27450, XL Lead Free
Max. Pressure
145 psi
Inlet Temperature (Cold)
40 Degrees to 75 Degrees F
Temp. Range
95 Degrees to 131 Degrees F
Body Material
Cast Bronze
Inlet Temperature (Hot)
120 Degrees to 195 Degrees F
Includes
Check Valves, Inlet Strainers
For Use With
Hot Water Supply Systems
Standards
ASSE 1017, CSA Certified, IAPMO, NSF/ANSI/CAN 61-9
Valve Type
Thermostatic
Includes Temperature Gauge
Temperature Gauge Not Included
Inlet Connection Gender - Hot
Female
Operating Temperature - Minimum Outlet
95 Degrees F
Inlet Connection Gender - Cold
Female
Operating Pressure - Minimum
145 psi
Inlet Connection Type - Cold
NPT
Operating Temperature - Maximum Outlet
131 Degrees F
Seal Material
NBR
Outlet Connection Type
NPT
Inlet Temperature - Maximum Hot
195 Degrees F
Operating Pressure - Maximum
145 psi
Inlet Temperature - Minimum Cold
40 Degrees F
Inlet Connection Type - Hot
NPT
Inlet Temperature - Maximum Cold
75 Degrees F
For Media
Hot Water, Water
Inlet Temperature - Minimum Hot
120 Degrees F

Description

Thermostatic Mixing Valve, Body Material Cast Bronze, Flow Rate 0.5 gpm to 18 gpm, Inlet Type FNPT, Outlet Type FNPT, Inlet Size 3/4 in, Outlet Size 3/4 in, Temp. Range 95 Degrees to 131 Degrees F, Max. Pressure 145 psi, Overall Height 5 1/2 in, Overall Width 5 7/16 in, Inlet Temperature (Cold) 40 Degrees to 75 Degrees F, Inlet Temperature (Hot) 120 Degrees to 195 Degrees F, For Use With Hot Water Supply Systems, Includes Check Valves, Inlet Strainers
