  11. Thermostatic Mixing Valve, 1/2 in Inlet

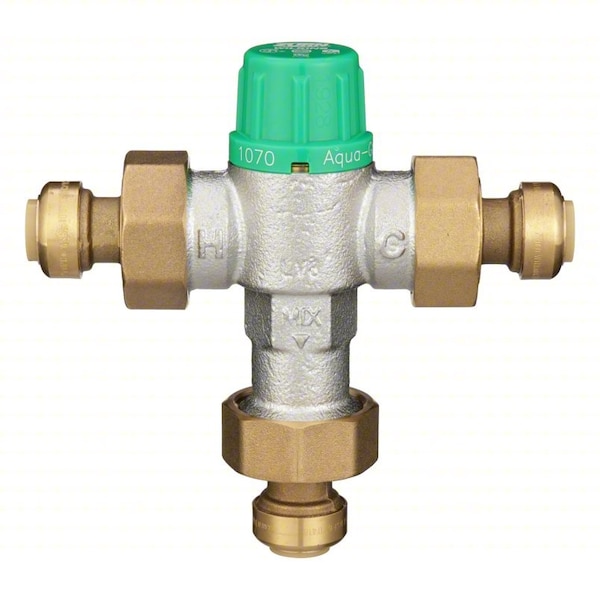

Wilkins Thermostatic Mixing Valve, 1/2 in Inlet 12-ZW1070XLPF - main

Thermostatic Mixing Valve, 1/2 in Inlet

  • Mfr # 12-ZW1070XLPF

  • Zoro # G108230368

product price: $287.99
/ea
Free Shipping & Returns

Key Features

Inlet Size
1/2 in
Outlet Type
Barb
Flow Rate
0.25 gpm; 10 gpm at 45 psi
Inlet Type
Barb
Outlet Size
1/2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
12-ZW1070XLPF
Zoro #
G108230368
UPC #
612052252155
Country of Origin
China

Dimensions

Inlet Size
1/2 in
Outlet Size
1/2 in
Overall Width
5 1/4 in
Overall Length
5 1/4 in
Overall Height
5 7/16 in
Outlet Connection Size
1/2 in
Inlet Connection Size - Cold
1/2 in
Inlet Connection Size - Hot
1/2 in

Details

Item
Thermostatic Mixing Valve
Outlet Type
Barb
Flow Rate
0.25 gpm; 10 gpm at 45 psi
Inlet Type
Barb
Max. Pressure
145 psi
Includes
Strainers
Standards
ASSE 1070, CSA B125.70, cUPC, NSF/ANSI/CAN 61-9
Temp. Range
95 Degrees to 131 Degrees F
For Use With
Hot Water Supply Systems
Inlet Temperature (Cold)
39 Degrees to 80 Degrees F
Inlet Temperature (Hot)
120 Degrees to 195 Degrees F
Compliance
ANSI 61-9, ASSE 1070, ASTM B 456, ASTM B 584, ASTM B 927, CSA B125.70, IAPMO, NSF, UNS C27450, XL Lead Free
Valve Type
Thermostatic
Body Material
Cast Bronze
Operating Temperature - Minimum Outlet
95 Degrees F
Operating Pressure - Minimum
125 psi
Operating Pressure - Maximum
145 psi
Seal Material
FKM
Inlet Connection Type - Hot
Barb
Inlet Connection Type - Cold
Barb
For Media
Hot Water, Water
Outlet Connection Type
NPT
Inlet Temperature - Maximum Hot
195 Degrees F
Inlet Temperature - Minimum Cold
39 Degrees F
Operating Temperature - Maximum Outlet
115 Degrees F
Inlet Temperature - Minimum Hot
120 Degrees F
Inlet Temperature - Maximum Cold
80 Degrees F
Includes Temperature Gauge
Temperature Gauge Not Included

Description

Thermostatic Mixing Valve, Body Material Cast Bronze, Flow Rate 0.25 gpm; 10 gpm at 45 psi, Inlet Type Barb, Outlet Type Barb, Inlet Size 1/2 in, Outlet Size 1/2 in, Temp. Range 95 Degrees to 131 Degrees F, Max. Pressure 145 psi, Overall Height 5 7/16 in, Overall Width 5 1/4 in, Inlet Temperature (Cold) 39 Degrees to 80 Degrees F, Inlet Temperature (Hot) 120 Degrees to 195 Degrees F, For Use With Hot Water Supply Systems, Includes Strainers

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
