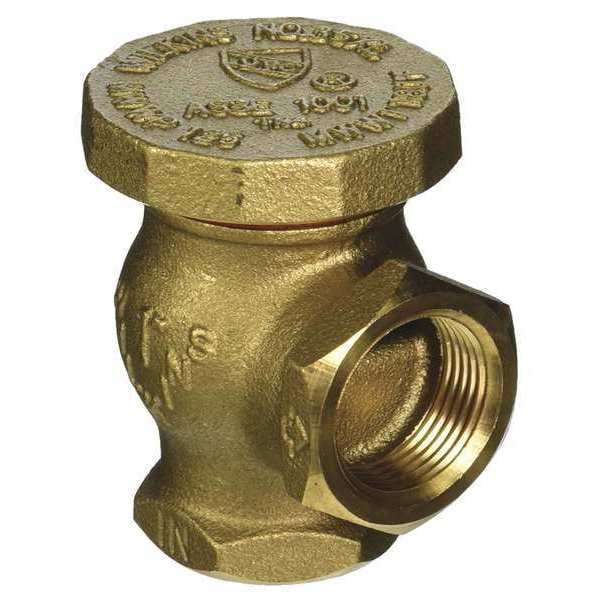

Vacuum Breaker, 1 In., FNPT x FNPT, 125 psi
- Mfr # 1-35XL
- Zoro # G4452497
product price:Â
$
139.99
/ea
Free Shipping & Returns
Key Features
Body Material
Bronze
Size
1"
Connection Type
FNPT x FNPT
Max. Pressure
125 psi
Seal
Buna Nitrile
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 1-35XL
- Zoro #
- G4452497
- UPC #
- 612052068381
- Country of Origin
- Taiwan, Province of China
- Body Material
- Bronze
- Connection Type
- FNPT x FNPT
- Max. Pressure
- 125 psi
- Seal
- Buna Nitrile
- Item
- Vacuum Breaker
- Temp. Range
- 180 Degrees F
- Material of Construction
- Cast Brass, Cast Bronze, Polypropylene, Silicone, Ultem
- Standards
- ASSE Listed 1001, CSA, IAPMO, NSF/ANSI 372
- Connection
- FNPT x FNPT
- Connection Type - Side 2
- NPT
- Seal Material
- Buna-N
- Connection Gender - Side 1
- Female
- Operating Temperature - Maximum
- 180 Degrees F
- Hazard Protection Level
- High Hazard
- Spring Material
- Bronze
- Flow
- 50 gpm
- Includes Atmospheric Vent
- Atmospheric Vent Included
- Connection Gender - Side 2
- Female
- Maximum Pressure - Operating
- 125 psi
- For Media
- Water
- Vacuum Breaker Style
- Atmospheric Vacuum Breaker
- Body Finish
- Rough Brass
- Connection Type - Side 1
- NPT
- Valve Series
- 35XL
Dimensions
- Size
- 1"
- Width
- 1 5/8 in
- Height
- 2 5/16 in
- Pipe Size
- 1"
- Connection Size - Side 2
- 1 in
- Connection Size - Side 1
- 1 in
- Nominal Valve Size
- 1 in
- Overall Length
- 2.31 in
- Wire Rope Length
- 2.31 in
- Length
- 2.31 in
Description
Vacuum Breaker, Size 1 in, Connection Type FNPT x FNPT, Material of Construction Cast Brass, Cast Bronze, Polypropylene, Silicone, Ultem, Seal Buna Nitrile, Max. Pressure 125 psi, Temp. Range 180 Degrees F, Height 2 5/16 in, Width 1 5/8 in, Standards ASSE Listed 1001, CSA, IAPMO, NSF/ANSI 372
