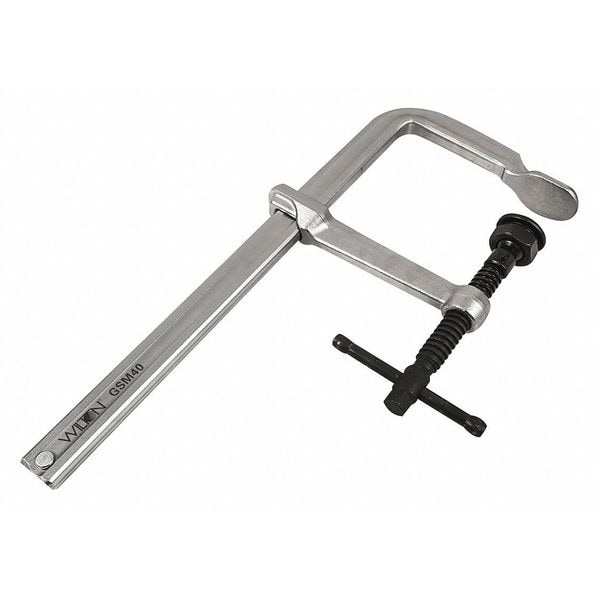

16 in Bar Clamp, Drop Forged Steel Handle and 4 3/4 in Throat Depth

  • Mfr # GSM40

  • Zoro # G3314206

product price:
$
123.99
/ea
Free Shipping & Returns

Key Features

Type
Heavy Duty F-Clamp
Handle Material
Drop Forged Steel
Throat Depth (In.)
4 3/4 in
Max. Jaw Opening (In.)
16 in
Pad Type
Replaceable, V-Groove
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
GSM40
Zoro #
G3314206
UPC #
731325375411
Country of Origin
Taiwan, Province of China

Dimensions

Throat Depth (In.)
4 3/4 in
Width (In.)
2 in
Width
2"
Nominal Rail Size (In.)
1-3/16 x 19/32
Spindle Dia. (In.)
3/4
Throat Depth
4 3/4 in
Spindle Diameter1
3/4 in
Overall Width3
2 in
Bar Thickness
5/8 in
Throat Depth1
4 3/4 in

Details

Item
Bar Clamp
Type
Heavy Duty F-Clamp
Handle Material
Drop Forged Steel
Max. Jaw Opening (In.)
16 in
Pad Type
Replaceable, V-Groove
Load Capacity (Lb.)
2,660 lb
Nominal Clamping Pressure
2,660
Swivel Type
Replaceable
Opening (In.)
16 in
Application
Welding and Fabrication
Function
Clamp
Jaw Pad Type
Swivel
Sliding Mechanism
Bar Slide
Spindle Finish1
Black Oxide
Clamping Force1
2,660 lb
Clamping Capacity1
16 in
Handle Style
Sliding T
Bar Type
Drop Forged
Clamping Force
2,660 lb

Description

The WILTON - GSM40 is a heavy-duty F-clamp bar clamp, crafted specifically for welding and fabrication. It uses a robust drop-forged bar with a thickness of 5/8 in and a sliding T handle made from the same robust drop-forged steel. The bar clamp applies a forceful clamping action with a capacity of 16 inches, making it an ideal tool for holding parts in place during assembly, gluing, and machining tasks.

Key Features of the WILTON - GSM40 Bar Clamp:

  • Application: Primarily designed to support welding and fabrication tasks.
  • Bar Type: The strength and travel accessibility is boosted by its drop-forged bar.
  • Clamping Force: The clamp offers a powerful clamping force of 2,660 lb, ensuring a tight and secure hold.
  • Handle: The sliding T handle is fashioned from durable, drop-forged steel, providing maximum torque when tightened.
  • Jaw Pad Type: Features a swivel jaw pad type that can adjust to the shape and angles of the workpiece.
  • Load & Clamping Capacity: It has a maximum load capacity of 2,660 lb and a clamping depth up to 4 3/4 inches.
  • Pad Type: Features replaceable, V-Groove pads to protect workpiece surface.
  • Sliding Mechanism: Utilizes a bar slide mechanism for efficient adjustments and secure locking on the bar.
