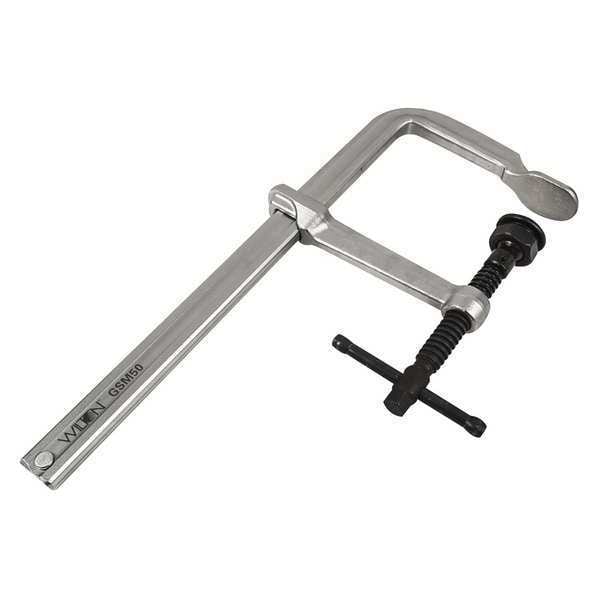

20 in Bar Clamp, Drop Forged Steel Handle and 5 1/2 in Throat Depth
- Mfr # GSM50
- Zoro # G3314197
product price:Â
$
134.99
/ea
Free Shipping & Returns
Key Features
Type
Heavy Duty F-Clamp
Handle Material
Drop Forged Steel
Throat Depth (In.)
5 1/2 in
Nominal Clamping Pressure
2,660
Nominal Rail Size (In.)
1-3/16 x 19/32
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- GSM50
- Zoro #
- G3314197
- UPC #
- 731325375428
- Country of Origin
- Taiwan, Province of China
- Item
- Bar Clamp
- Type
- Heavy Duty F-Clamp
- Handle Material
- Drop Forged Steel
- Max. Jaw Opening (In.)
- 20 in
- Nominal Clamping Pressure
- 2,660
- Application
- Welding and Fabrication
- Load Capacity (Lb.)
- 2,660 lb
- Swivel Type
- Replaceable
- Opening (In.)
- 20 in
- Pad Type
- Replaceable, V-Groove
- Function
- Clamp
- Bar Type
- Drop Forged
- Clamping Force1
- 2,660 lb
- Sliding Mechanism
- Bar Slide
- Spindle Finish1
- Black Oxide
- Clamping Capacity1
- 20 in
- Handle Style
- Sliding T
- Jaw Pad Type
- Swivel
- Clamping Force
- 2,660 lb
Dimensions
- Throat Depth (In.)
- 5 1/2 in
- Nominal Rail Size (In.)
- 1-3/16 x 19/32
- Spindle Dia. (In.)
- 3/4
- Width
- 2"
- Width (In.)
- 2 in
- Throat Depth
- 5 1/2 in
- Throat Depth1
- 5 1/2 in
- Bar Thickness
- 5/8 in
- Spindle Diameter1
- 3/4 in
- Overall Width3
- 2 in
Description
The WILTON - GSM50 Bar Clamp is a specialized tool for welding and fabrication works, designed to apply and maintain pressure to secure workpieces during various operations. With a long, Drop Forged bar and reliable clamping capacity, this device is capable of holding parts squarely during processes such as gluing, joining, or machining.
Key Features of WILTON - GSM50 Bar Clamp:
- Clamping Force: The maximum clamping force that the bar clamp can generate is 2,660 lb, providing a sturdy and secure grip on the workpiece.
- Bar type: It features a Drop Forged bar which adds to the strength, travel, and accessory compatibility of the clamp.
- Handle Material and Style: Made of durable Drop Forged Steel, its handle follows a Sliding T style for easy adjustments and tightening of the clamp.
- Jaw Pad Type: It houses a Swivel jaw pad, offering the ability to adjust to various angles and fit different shapes of workpieces.
- Load Capacity: With a maximum load capacity of 2,660 lb, this bar clamp can support heavier workpieces.
- Max. Jaw Opening: It accommodates a maximum jaw opening of 20 in, making it versatile for a variety of material widths.
- Throat Depth: Its throat depth measures at 5 1/2 in, indicating the extent the clamp can reach into the workpiece.
- Sliding Mechanism: Equipped with a Bar Slide mechanism, it ensures smooth movement and locking of the sliding jaw along the bar.
