  6. 5-1/2" Heavy Duty Combination Vise with Swivel Base

This item is Discontinued.

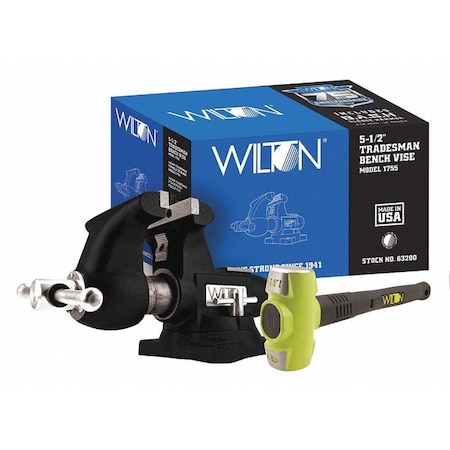

Wilton 5-1/2" Heavy Duty Combination Vise with Swivel Base 63200A

5-1/2" Heavy Duty Combination Vise with Swivel Base (Discontinued)

  • Mfr # 63200A
  • Zoro # G3106559
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
63200A
Zoro #
G3106559
UPC #
731325453645
Country of Origin
United States

Dimensions

Jaw Width
5-1/2"
Overall Width
9-7/64"
Throat Depth - Vises
3 3/4 in
Jaw Width - Vises
5 1/2 in
Jaw Width Range
5 1/8 in to 7 in
Mounting Hole Dia.
17/32"
Overall Height
9-39/64"
Throat Depth
3-3/4"
Overall Length
17-5/16"
Throat Depth Range
3 in to 5 in

Details

Material
Ductile Iron
Duty Rating
Heavy Duty
Max. Opening
5"
Base Type
Swivel
Reversible
No
Quick-Acting
No
Base Type - Vises
Swivel
Swivel Angle
360 Degrees
Max. Opening Range
3 in to 5 in
Number of Lock Down Bolts
2
Number of Mounting Points
4
Item
Combination Vise
Max. Opening - Vises
5 in
Jaw Face - Vises
Serrated
Rotating Angle
360 Degrees
Jaw Face
Serrated
Material -Vises
Ductile Iron
Item - Vises
Combination Vise
Deep Throat
No
High Visibility
No
Body Casting
60,000 psi
Features
Wilton 75th Anniversary Special Edition Black 1755 Tradesman Vise Includes A Free B.A.S.H(R) 20416 Sledge Hammer, Nut is Anchored At The Rear Providing Straight Line Pull and Even Pressure, Enclosed Spindle and Nut Assembly, Anvil Work Surface
Duty Rating - Vises
Heavy Duty
Pipe Capacity
3"
Body Casting Tensile Strength
60,000 psi
Jaw Type
Replaceable
Pipe Capacity - Vises
3 in
Swivel Angle - Vises
360 Degrees
Product Grouping - Vises
Bench Vises
Pipe Jaw Included
No
High-Visibility
No
Vise Type
Utility

Description

Combination Vise, Throat Depth 3-3/4 In., Base Type Swivel, Features Wilton 75th Anniversary Special Edition Black 1755 Tradesman Vise Includes A Free B.A.S.H(R) 20416 Sledge Hammer, Nut is Anchored At The Rear Providing Straight Line Pull and Even Pressure, Enclosed Spindle and Nut Assembly, Anvil Work Surface, Number of Lock Down Bolts 2, Overall Height 9 39/64 in, Overall Length 17 5/16 in, Overall Width 9 7/64 in
