Shop WILTON

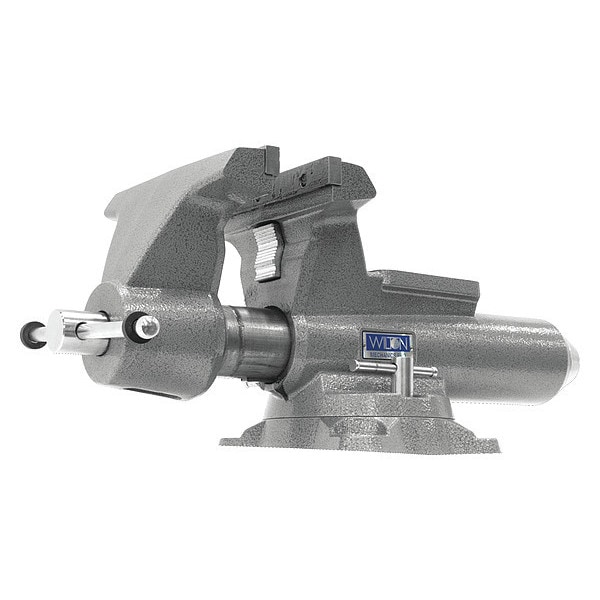

Combination Vise, Serrated Jaw, 13 7/16" L

  • Mfr # 8100M
  • Zoro # G4548790
product price:
$
1,418.99
/ea
Free Shipping & Returns

Key Features

Base Type
Swivel
Duty Rating
Heavy Duty
Overall Height
13 7/16 in
Overall Length
28 11/16 in
Throat Depth
5 1/2 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
8100M
Zoro #
G4548790
UPC #
731325749557
Country of Origin
China

Dimensions

Overall Height
13 7/16 in
Overall Length
28 11/16 in
Throat Depth
5 1/2 in
Overall Width
12 3/16 in
Throat Depth - Vises
5 1/2 in
Mounting Hole Dia.
11/16 in
Jaw Width Range
Greater than 7 in
Throat Depth Range
Greater than 5 in
Jaw Width - Vises
10 in
Jaw Face Width
10 in
Mounting Hole Diameter
5/8 in
Pipe Diameter - Minimum
1/2 in
Pipe Diameter - Maximum
5 in
Wire Rope Length
28 11/16 in
Length
28 11/16 in
Fits Chest Size
Enclosed Spindle Keeps Lubricants in and Contaminants Out for Smooth Operation, Large Anvil Work Surface, Large Anvil Work Surface - Accommodates a Wide Range of Striking Needs, Needle Roller Thrust Bearing - Easier to Apply and Release Greater Clamping Force, Precision Machined Slide Bar - Eliminates Movement in the Front Jaw Regardless of Opened Distance

Details

Item
Combination Vise
Base Type
Swivel
Duty Rating
Heavy Duty
Features
Enclosed Spindle Keeps Lubricants in and Contaminants Out for Smooth Operation, Large Anvil Work Surface, Large Anvil Work Surface - Accommodates a Wide Range of Striking Needs, Needle Roller Thrust Bearing - Easier to Apply and Release Greater Clamping Force, Precision Machined Slide Bar - Eliminates Movement in the Front Jaw Regardless of Opened Distance
Quick-Acting
No
Item - Vises
Combination Vise
Jaw Face - Vises
Serrated
Number of Mounting Points
4
Material -Vises
Ductile Iron
Product Grouping - Vises
Bench Vises
Max. Opening - Vises
12 in
Swivel Angle - Vises
360 Degrees
Jaw Type
Replaceable
Deep Throat
No
Pipe Capacity - Vises
1/4 in to 5 in
Duty Rating - Vises
Standard Duty
High Visibility
No
Jaw Material
Iron
Number of Lock Down Bolts
2
Reversible
No
Base Type - Vises
Swivel
Pipe Jaw Included
Yes
Max. Opening Range
Greater than 7 in
Rotating Angle
360 Degrees
Body Casting Tensile Strength
60,000 psi
High-Visibility
No
Jaw Face Type
Serrated
Body Material
Ductile Iron
Base Tensile Strength
60,000 psi
Includes Rotating Head
No
Body Tensile Strength
60,000 psi
Includes Pipe Jaw
Yes
Jaw Attachment Type
Replaceable
Jaw Pad Material
Hardened Steel
Spindle Type
Enclosed
Number of Mounting Holes
4
Base Material
Ductile Iron
Vise Type
Mechanics Pro Vise
Jaw Opening - Maximum
12 in
Base Swivel Angle
360 Degrees

Description

The WILTON 8100M is a combination bench vise with a swivel base and integrated pipe jaws for holding flat stock and pipe. It is made from ductile iron with a 10 in serrated jaw face, a maximum jaw opening of 12 in, and a throat depth of 5-1/2 in. The vise also includes a large anvil work surface and an enclosed spindle designed to keep lubricants in and contaminants out during operation.

Key Features of the WILTON 8100M Combination Vise:

  • Combination vise design: Supports both general clamping and pipe holding applications.
  • Ductile iron body and base: Body and base are made from ductile iron.
  • 360-degree swivel base: Allows the vise to be positioned as needed on the bench.
  • 10 in serrated replaceable jaws: Provide a gripping surface, and the jaw attachments can be replaced.
  • 12 in maximum jaw opening: Accommodates larger workpieces.
  • Pipe jaw included: Holds pipe from 1/4 in to 5 in capacity.
  • Enclosed spindle: Helps keep lubricants in and contaminants out.
  • Needle roller thrust bearing: Assists with applying and releasing clamping force.
  • Precision machined slide bar: Reduces movement in the front jaw across the opening range.
  • Large anvil work surface: Provides an area for striking tasks.
  • 4 mounting holes: Designed for bench mounting.
