Shop WILTON

Combo Vise, Serrated Jaw, 11 13/16" L

  • Mfr # 4800R
  • Zoro # G3945591

product price:
$
477.99
/ea
Free Shipping & Returns

Key Features

Base Type
Swivel
Duty Rating
Standard Duty
Overall Height
11 13/16 in
Overall Length
22 13/16 in
Throat Depth
4 3/4 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
4800R
Zoro #
G3945591
UPC #
731325749632
Country of Origin
China

Dimensions

Overall Height
11 13/16 in
Overall Length
22 13/16 in
Throat Depth
4 3/4 in
Throat Depth - Vises
4 3/4 in
Overall Width
11 in
Throat Depth Range
3 in to 5 in
Jaw Width - Vises
8 in
Mounting Hole Dia.
1/2 in
Jaw Width Range
Greater than 7 in
Pipe Diameter - Maximum
4 in
Pipe Diameter - Minimum
3/8 in
Jaw Face Width
8 in
Mounting Hole Diameter
1/2 in
Wire Rope Length
22 13/16 in
Length
22 13/16 in
Fits Chest Size
Built-In Pipe Jaws Handle a Range of Pipe Sizes, Large Anvil Work Surface, Two Large Anvil Work Surfaces, Two Large Anvil Work Surfaces for Forming and Shaping Materials

Details

Item
Combination Vise
Base Type
Swivel
Duty Rating
Standard Duty
Features
Built-In Pipe Jaws Handle a Range of Pipe Sizes, Large Anvil Work Surface, Two Large Anvil Work Surfaces, Two Large Anvil Work Surfaces for Forming and Shaping Materials
Jaw Face - Vises
Serrated
Number of Mounting Points
4
Max. Opening Range
Greater than 7 in
Rotating Angle
360 Degrees
Product Grouping - Vises
Bench Vises
Deep Throat
No
Item - Vises
Combination Vise
Pipe Capacity - Vises
3/8 in to 4 in
Duty Rating - Vises
Standard Duty
Jaw Material
Steel
Max. Opening - Vises
9 1/4 in
Material -Vises
Ductile Iron
Number of Lock Down Bolts
2
Swivel Angle - Vises
360 Degrees
Quick-Acting
No
Base Type - Vises
Swivel
Jaw Type
Replaceable
High Visibility
No
Reversible
Yes
Pipe Jaw Included
Yes
Body Casting Tensile Strength
30,000 psi
High-Visibility
No
Number of Mounting Holes
4
Includes Pipe Jaw
Yes
Jaw Face Type
Serrated
Spindle Type
Enclosed
Material Process
Cast
Reverse Jaw Opening - Maximum
14 1/2 in
Body Tensile Strength
30,000 psi
Base Material
Iron
Body Material
Ductile Iron
Base Swivel Angle
360 Degrees
Includes Rotating Head
No
Jaw Opening - Maximum
9 1/4 in
Jaw Pad Material
Hardened Steel
Base Tensile Strength
60,000 psi
Jaw Attachment Type
Replaceable
Vise Type
Bench Vise

Description

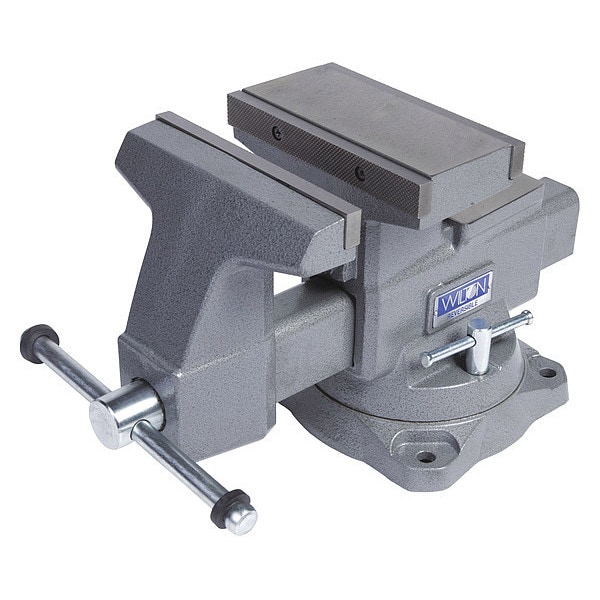

The WILTON 4800R is a combination bench vise with a reversible design that expands its clamping range. It has 8 in serrated, replaceable hardened steel jaw faces with a maximum standard jaw opening of 9-1/4 in and a reverse jaw opening up to 14-1/2 in. Built-in pipe jaws allow it to hold pipe from 3/8 in to 4 in in diameter, and two large anvil work surfaces provide space for forming and shaping materials. The vise has a 360-degree swivel base with two lock-down bolts and mounts using four 1/2 in holes.

Key features:

  • Reversible jaw design: Extends opening capacity up to 14-1/2 in for larger workpieces.
  • Jaw width: 8 in serrated steel jaws provide a firm gripping surface.
  • Replaceable jaw faces: Jaw inserts can be replaced when worn.
  • Pipe jaws included: Handles pipe sizes from 3/8 in to 4 in.
  • Two anvil work surfaces: Provides flat areas for forming and shaping materials.
  • 360-degree swivel base: Allows the vise to be positioned around the base as needed.
  • Dual lock-down bolts: Secures the swivel base in the selected position.
  • Material and construction: Cast body rated at 30,000 psi tensile strength with a base rated at 60,000 psi tensile strength.
  • Throat depth: 4-3/4 in reach from the top of the jaws to the spindle area.
  • Enclosed spindle: Helps protect the spindle mechanism during use.
