Winland Electronics

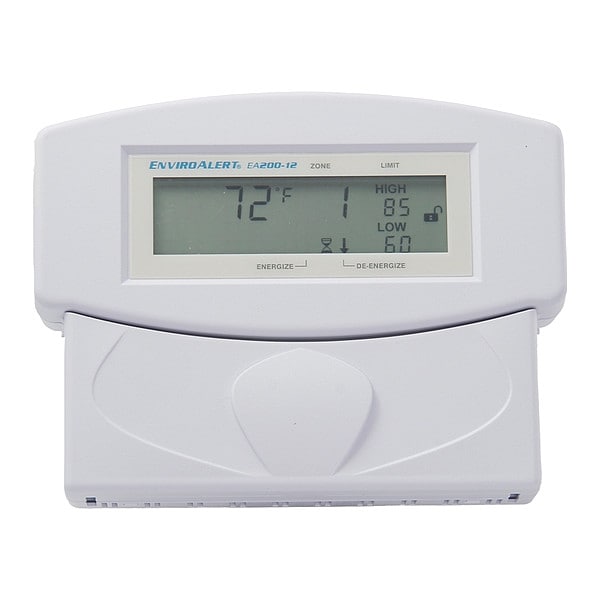

Temperature Alarm, -58 to 299 deg. F

Hover or click to zoom Tap to zoom
Help us improve our product images
Key Features
  • Item: Temperature Alarm
  • Temp. Range: -58 Degrees to 299 Degrees F
  • Power Source: Plug-In, Power from Alarm Panel
  • Width: 6 in
  • Height: 4 3/4 in
  • Depth: 1 1/4 in
  • Indication: Audible
  • Includes: Mounting Equipment, Instructions
See full product details
$115.00
Ships from United States
Join our email list for 10% off your first order
For 10% Off Your First Order
Free Shipping on $50+ Orders
No-Hassle, 30-Day Returns 30-Day Returns
125 U.S.-Based Customer Service Agents 125 U.S.-Based Customer Service Agents

Winland Electronics #EA200-12 Specifications

  • Item: Temperature Alarm
  • Temp. Range: -58 Degrees to 299 Degrees F
  • Power Source: Plug-In, Power from Alarm Panel
  • Width: 6 in
  • Height: 4 3/4 in
  • Depth: 1 1/4 in
  • Indication: Audible
  • Includes: Mounting Equipment, Instructions
  • Contact Rating: 1 A @ 30V DC (Configurable)
  • Time Delay: 120 min
  • Features: Simultaneous Operation of Both Zones, Defrost Time Delay Up to 2 hr, Easy to Read Large LCD Display, Eight Event Alarm Memory with Time and Date, Auxiliary Output Relay for Local Audible Alarm, Auxiliary Alarm Silence Feature with 10 Minute Timer, Each Zone Has offset Calibration Adjustment, Temperature and Humidity High/Low Set Points, Output Relays Can Be Configured to Be Initially Energized or De-Energized, Tamper Proof Lock Setting, Snap Fit Mounting Base with Main Housing for Easy Access, Plug In Terminal Strip Connectors for Easier Wire Termination, Zones Being Monitored are Displayed Every Few Seconds, Display F Degrees , C Degrees , % (Humidity) or Water Drop Icon, Zone Configuration Retained In Memory If Power is Lost
  • Alarm Outputs: (1) Auxiliary Form C Relay (N.O./N.C.) Non-Configurable, (2) Form C Relays (N.O./N.C.) 1A @ 30V DC Configurable
  • Operating Temperature Range: 32 Degrees to 122 Degrees F
  • Backlit: No
  • Alarm Temperature Range: -58 Degrees to 299 Degrees F/-50 Degrees to 150 Degrees C
  • Sensor Configuration: 2
  • Power Source Details: 11 to 14V DC
  • Maximum Alarm Temperature: 299 Degrees F
  • Display Features: Graphic LCD Data with Flashing Alarm
  • Minimum Alarm Temperature: -58 Degrees F
  • Number of Zones: 2
  • Accuracy: +/-2 Degrees F for Onboard Sensor Only
  • Voltage: 11 to 14V DC
  • Alarm Type: High/Low
  • Includes Batteries: No
  • Color: White
  • Weight: 8.82 oz
  • Country of Origin (subject to change): China

Description

Temperature Alarm, Alarm Temperature Range -58 Degrees to 299 Degrees F/-50 Degrees to 150 Degrees C, High/Low, Contact Rating 1 A @ 30V DC (Configurable), Number of Zones 2, Sensor Configuration 2, Alarm Outputs (1) Auxiliary Form C Relay (N.O./N.C.) Non-Configurable, (2) Form C Relays (N.O./N.C.) 1A @ 30V DC Configurable, Includes Batteries No, 11 to 14V DC, Mounting Location Surface Mount
