Winland Electronics

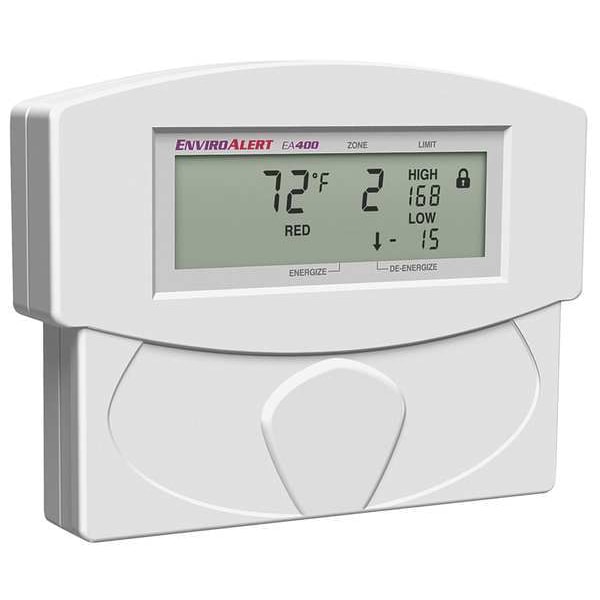

Temperature Alarm, -30 to 120 deg. F

product price: $313.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Temp. Range -30 Degrees to 120 Degrees F
  • Power Source Plug-In, Power from Alarm Panel
  • Width 6 in
  • Height 4 3/4 in
  • Depth 1 1/4 in
See all product information

Product Information

Dimensions

Width 6 in
Height 4 3/4 in
Depth 1 1/4 in

Details

Item Temperature Alarm
Temp. Range -30 Degrees to 120 Degrees F
Power Source Plug-In, Power from Alarm Panel
Indication Audible
Includes Mounting Equipment, Instructions
Time Delay 120 min
Contact Rating 1 A @ 30V DC (Configurable)
Features Simultaneous Operation of Both Zones, Defrost Time Delay Up to 2 hr, Easy to Read Large LCD Display, Eight Event Alarm Memory with Time and Date, Auxiliary Output Relay for Local Audible Alarm, Auxiliary Alarm Silence Feature with 10 Minute Timer, Each Zone Has Offset Calibration Adjustment, Temperature and Humidity High/Low Set Points, Output Relays Can Be Configured to Be Initially Energized or De-Energized, Tamper Proof Lock Setting, Snap Fit Mounting Base with Main Housing for Easy Access, Plug In Terminal Strip Connectors for Easier Wire Termination, Zones Being Monitored are Displayed Every Few Seconds, Display F Degrees , C Degrees , % (Humidity) or Water Drop Icon, Zone Configuration Retained In Memory If Power is Lost
Alarm Outputs (1) Auxiliary Form C Relay (N.O./N.C.) Non-Configurable, (4) Form C Relays (N.O./N.C.) 1A @ 30V DC Configurable
Alarm Type High/Low
Minimum Alarm Temperature -58 Degrees F
Alarm Temperature Range -58 Degrees to 299 Degrees F/-50 Degrees to 150 Degrees C
Number of Zones 4
Includes Batteries No
Operating Temperature Range 32 Degrees to 122 Degrees F
Display Features Graphic LCD Data with Flashing Alarm
Maximum Alarm Temperature 299 Degrees F
Power Source Details 23 to 26V DC
Backlit No
Voltage 23 to 26V DC
Sensor Configuration 4
Weight 9.60 oz

Description

Temperature Alarm, Alarm Temperature Range -58 Degrees to 299 Degrees F/-50 Degrees to 150 Degrees C, High/Low, Contact Rating 1 A @ 30V DC (Configurable), Number of Zones 4, Sensor Configuration 4, Alarm Outputs (1) Auxiliary Form C Relay (N.O./N.C.) Non-Configurable, (4) Form C Relays (N.O./N.C.) 1A @ 30V DC Configurable, Includes Batteries No, 23 to 26V DC, Mounting Location Surface Mount
