Shop WINLAND ELECTRONICS

Water Detection System, Console, 9V

  • Mfr # WB-350

  • Zoro # G8812255

product price:  $159.99
/ea
Free Shipping & Returns

Key Features

Voltage
9
Includes
Unsupervised Sensor
Amps
Greater Than 40mA
Connection
Form C Relays
Compliance
RoHs
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
WB-350
Zoro #
G8812255
UPC #
082075010474
Country of Origin
China

Dimensions

Width
3 1/6 in
Size
2 7/6 in x 5 in
Height
5 in
Alarm Unit Dimensions
1.3 in L x 2.4 in W x 5.0 in H
Sensor Unit Dimensions
2 in W x 0.88 in D x 3 in H
Length
1-1/4 in

Details

Item
Water Detector and Alarm
Voltage
9
Includes
Unsupervised Sensor
Amps
Greater Than 40mA
Connection
Form C Relays
Compliance
RoHs
Max. Temp. (F)
140 Degrees Degrees F
Type
Console
Features
Low Battery Indicator
Standards
RoHS
Alarm Sound Level
83 dB @ 30 cm
Connection Type
Form C Relays
Includes Batteries
No
Minimum Operating Temperature
32 Degrees F
Current
40 mA
Power Source
Battery
Operating Voltage
9V DC
Sound Pattern
Pulse
Detector Type
Water
Battery Chemistry
Alkaline
Maximum Operating Temperature
140 Degrees F
Compatible Product Type
Universal
Compatible Manufacturer Part Number
WaterBug
Product Type
Water Detector and Alarm
Monitoring Application
Basements, Condensate Pan, Drains, Frozen Pipes, Standing Pilot Gas Water Heaters, Sump Pumps, Tank Water Heaters, Tubs, Under Sinks, Water Heaters, Water-Fed Appliances
Material
ABS Housing

Description

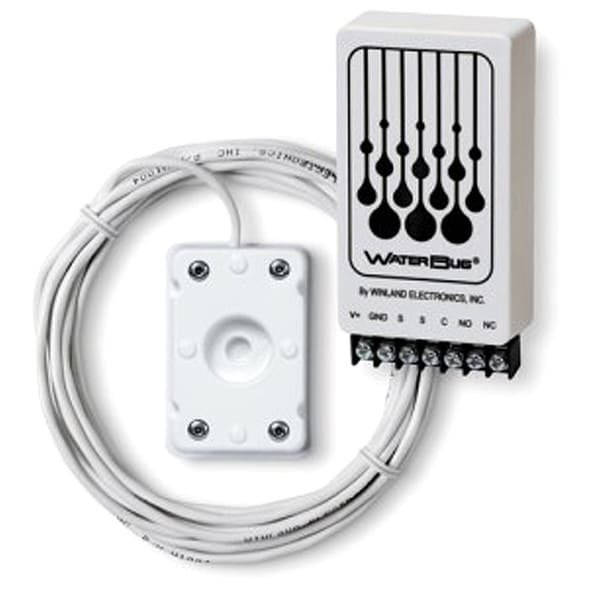

The WaterBug® 350 ("WB350") is a water detection device ideal for computer rooms, document storage areas, warehouses, sump pumps and basements. WaterBug sensors activate the alarm when a conductive bridge is formed between 2 contacts. Protect your assets with the WB350.


  • • Monitors for the presence of water.
  • • Utilizes 9V battery for stand-alone operation (Battery not included)
  • • Device includes one standard unsupervised surface sensor (W-S-U). Device accepts up to six total sensors (W-S-U). Additional sensors (W-S-U) sold separately.
  • • Up to 6 sensors can be located up to 100' (30.48m) away from the device for a wide area of protection. Use 18-22 AWG twisted pair wire for extension of sensors from the device.
  • • 9V DC alkaline battery powered device with low battery alarm. Battery life is approximately 1 to 2 years.
  • • Pulsed integrated audible alarm is 83 dB at 30cm at 9V DC.
  • • Unit operating range of 32 to 140 °F (0 to 60 °C) in non-condensing environment. Indoor use only.
  • • Output is an open collector transistor (N.O. circuit only). 30V DC max collector current at 25mA.

Documents & Resources

Restrictions

This is a restricted item in the USA. It cannot be used for potable water applications.
