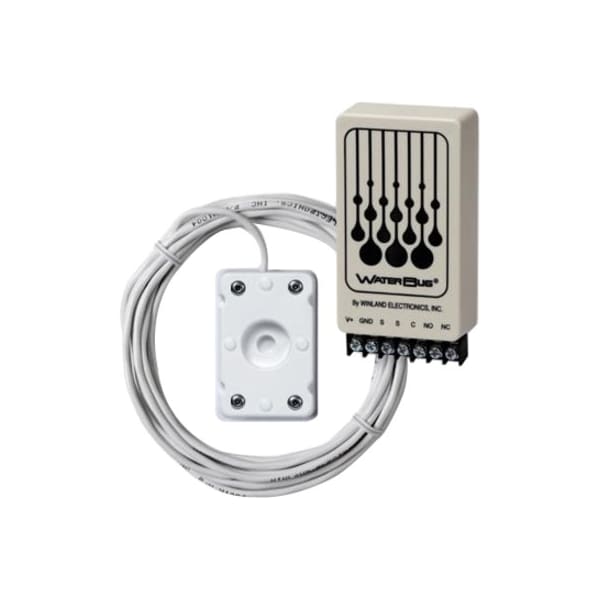

Winland Electronics Water Detection Systm, 8 to 28 VAC/DC WB-200 - main
Shop WINLAND ELECTRONICS

Water Detection Systm, 8 to 28 VAC/DC

  • Mfr # WB-200

  • Zoro # G8812246

product price:  $86.99
/ea

Key Features

Voltage
8 to 28 V AC/DC
Includes
Unsupervised Sensor
Width
4 1/8 in
Height
2 25/32 in
Amps
Greater Than 100mA
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
WB-200
Zoro #
G8812246
UPC #
082075011372
Country of Origin
China

Dimensions

Width
4 1/8 in
Height
2 25/32 in
Size
4 1/8 in x 2 25/32 in
Alarm Unit Dimensions
1.2 in L x 4.1 in W x 2.4 in H
Sensor Unit Dimensions
2 in W x 0.88 in D x 3 in H
Length
1.18 in

Details

Item
Water Detector and Alarm
Voltage
8 to 28 V AC/DC
Includes
Unsupervised Sensor
Amps
Greater Than 100mA
Compliance
RoHS & CE
Type
Console
Connection
Form C Relays
Max. Temp. (F)
140 Degrees Degrees F
Maximum Operating Temperature
140 Degrees F
Includes Batteries
No
Operating Voltage
12 to 24V AC/DC
Connection Type
Form C Relays
Minimum Operating Temperature
32 Degrees F
Detector Type
Water
Current
100 mA
Power Source
Hardwired
Standards
CE, RoHS
Compatible Manufacturer Part Number
WaterBug
Monitoring Application
Basements, Condensate Pan, Drains, Frozen Pipes, Standing Pilot Gas Water Heaters, Sump Pumps, Tank Water Heaters, Tubs, Under Sinks, Water Heaters, Water-Fed Appliances
Compatible Product Type
Universal
Material
ABS Housing
Features
Accepts up to 6 Total Sensors (W-S-U and W-UC-U), Hard Wire Power, Sensors can be Located up to 100ft (30.48 m) Away from the Unit
Product Type
Water Detector and Alarm

Description

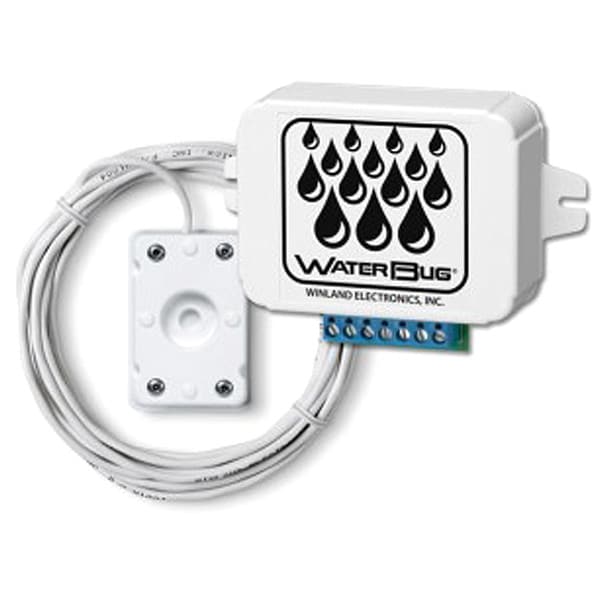

The WaterBug® 200 ("WB200") is a water detection device ideal for computer rooms, document storage areas, warehouses, sump pumps and basements. WaterBug sensors activate the alarm when a conductive bridge is formed between 2 contacts. Protect your assets with the WB200.


  • • Monitors for the presence of water. Can be used to detect the absence of water.
  • • Device includes one standard unsupervised surface sensor (W-S-U).
  • • Device accepts up to six total sensors (W-S-U). Additional sensors (W-S-U) sold separately.
  • • 1 to 2 sensors can be located up to 200' (60.96m) or 3 to 6 sensors can be located up to 100' (30.48m) away from the device for a wide area of protection. Use 18-22 AWG twisted pair wire for extension of sensors from the device.
  • • Hard wire powered device. Ensure that the power running to the device does NOT have a connection to earth ground. This could result in a failure to detect water or ground fault.
  • • Power requirements of 8 to 28V DC at 35mA or 12 to 28 V AC at 100mA
  • • Unit operating range of 32 to 130 °F (0 to 54 °C) in non-condensing environment. Indoor use only.
  • • Output is 1 Form C (N.O./N.C.) with 30V DC at 1 Amp resistive/24V AC at 1 Amp resistive
