  9. Air Over Water Test Gauge Kt, 0 to 200psi

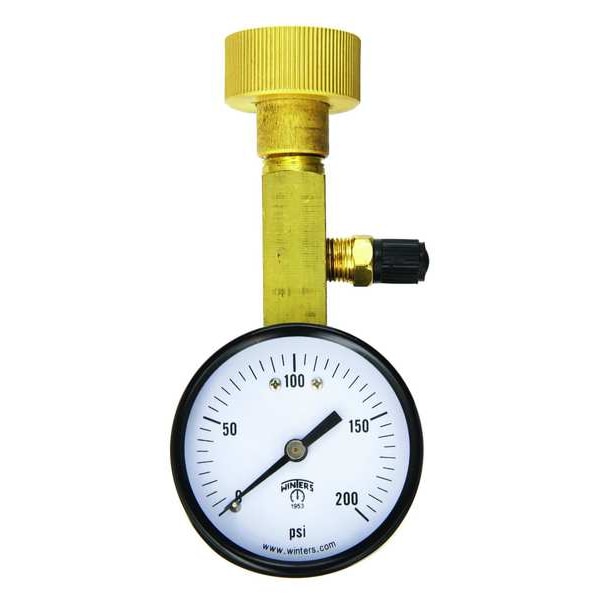

Winters Air Over Water Test Gauge Kt, 0 to 200psi AOM-204TM - main

Air Over Water Test Gauge Kt, 0 to 200psi

  • Mfr # AOM-204TM

  • Zoro # G1860008

product price: $9.19
/ea

Key Features

Includes
3/4 in Swivel Hose, Gauge, Schrader Bleed Valve On The Socket
Manufacturers Warranty Length
1 yr
Range
0 to 200 psi
Accuracy
+/-3-2-3%
Pressure Range
0 to 200 psi
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
AOM-204TM
Zoro #
G1860008
UPC #
-
Country of Origin
China

Dimensions

Manufacturers Warranty Length
1 yr
Manufacturer Warranty Length
5 yr
Process Connection Size
3/4 in
Nominal Dial Size
2 in
Case Depth
9 mm
Case Diameter
27.2 mm
Gauge Case Depth
0.35 in
Nominal Dial Diameter
2 in
Gauge Case Diameter
1.07 in

Details

Item
Air Over Water Test Gauge Kit
Includes
3/4 in Swivel Hose, Gauge, Schrader Bleed Valve On The Socket
Range
0 to 200 psi
Accuracy
+/-3-2-3%
Pressure Range
0 to 200 psi
Socket Material
Brass
Application
Non-Corroding Media, Residential, Non-Clogging Media
Dial Face Material
Aluminum
Adjustable Pointer
No
Pointer Color
Black
Dial Color
White
Gauge Case Material
Steel
Freeze Resistant Movement
No
Pressure Range Type
Pressure
Primary Scale Units
psi
Temperature Scale Units
Degrees C, Degrees F
Reads Head Pressure
No
Accuracy Grade
ASME B40.100 Grade B
Scale Type
Single
Lens Material
Acrylic
Pressure Gauge Type
Air Over Water Test Gauge
Sensor Material
Bronze
Standards
ANSI/ASME
Primary Pressure Range
0 to 200
Pointer Material
Aluminum
Accuracy Scale
Mid-Scale
Compatible Process Media
Water
Primary Pressure Scale Color
Black
Process Connection Gender
Female
Series
AOM
Sensor Type
Bourdon Tube
Process Connection Type
GHT
Ambient Operating Temperature Range
-40 Degrees to 150 Degrees F, -40 Degrees to 65 Degrees C
Process Temperature Range
-40 Degrees to 150 Degrees F, -40 Degrees to 65 Degrees C
Primary Scale Pressure Measurement - Maximum
200 psi
Process Media Temperature - Maximum
150 Degrees F
Process Connection Location
Top
Primary Scale Pressure Measurement - Minimum
0 psi
Primary Scale Color
Black
Process Media Temperature - Minimum
-40 Degrees F
Operating Temperature - Minimum
-40 Degrees F
Operating Temperature - Maximum
150 Degrees F

Description

Air Over Water Test Gauge Kit, Range 0 to 200 psi, Includes Schrader Bleed Valve On The Socket, 3/4 In. Swivel Hose, Manufacturers Warranty Length 1 Year

Restrictions

This is a restricted item in the USA. It cannot be used for potable water applications.
